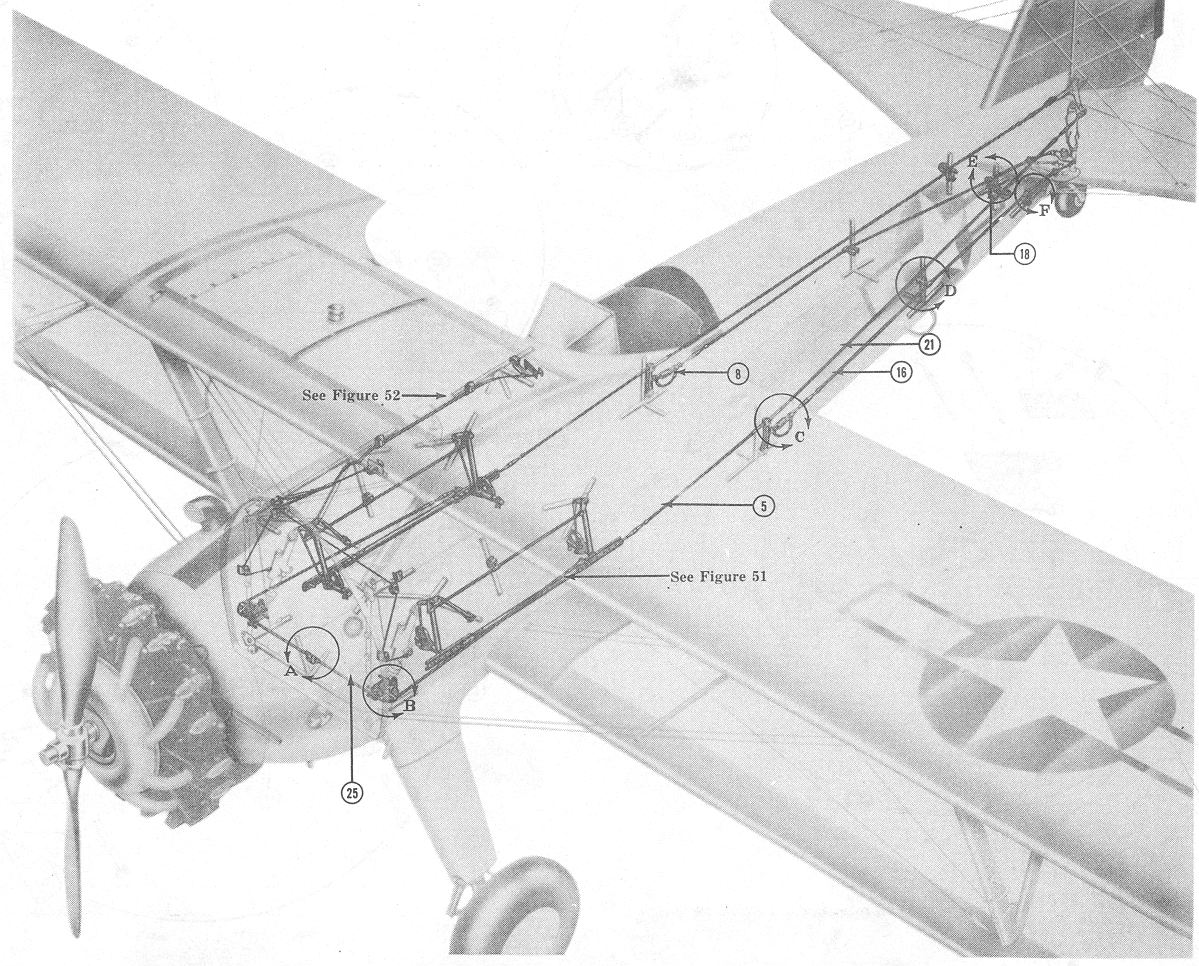

rudder_control_figure_51a

Part Number = AG73_3405_G -- Reference Number -- 8 -- Tailwheel safety cable-galvanized, 2 required

Part Number = AG73_3405_SB -- Reference Number -- 8 -- Tailwheel safety cable-stainless steel, 2 required

Part Number = AG75_3488_G -- Reference Number -- 16 -- Stearable cable less housing-galvanized, 2 required

Part Number = AG75_3488_S -- Reference Number -- 16 -- Stearable cable less housing-stainless steel, 2 required

Part Number = AG75_3488HG -- Reference Number -- 16 -- Stearable cable with housing-galvanized, 2 required

Part Number = AGA75N1_3405_2G -- Reference Number -- 5 -- Front rudder cable-galvanized, 2 required

Part Number = AGA75N1_3405_3G -- Reference Number -- 21 -- Rear rudder cable-galvanized, 2 required

Part Number = AGA75N1_3405_3S -- Reference Number -- 21 -- Rear rudder cable-stainless steel, 2 required

Part Number = AGA75N1_3417_G -- Reference Number -- 31 -- Rudder balance cable-galvanized, 1 required

Part Number = AGE75_3407 -- Reference Number -- 18 -- Bracket assembly-rudder cable self aligning pulley, 2 required
