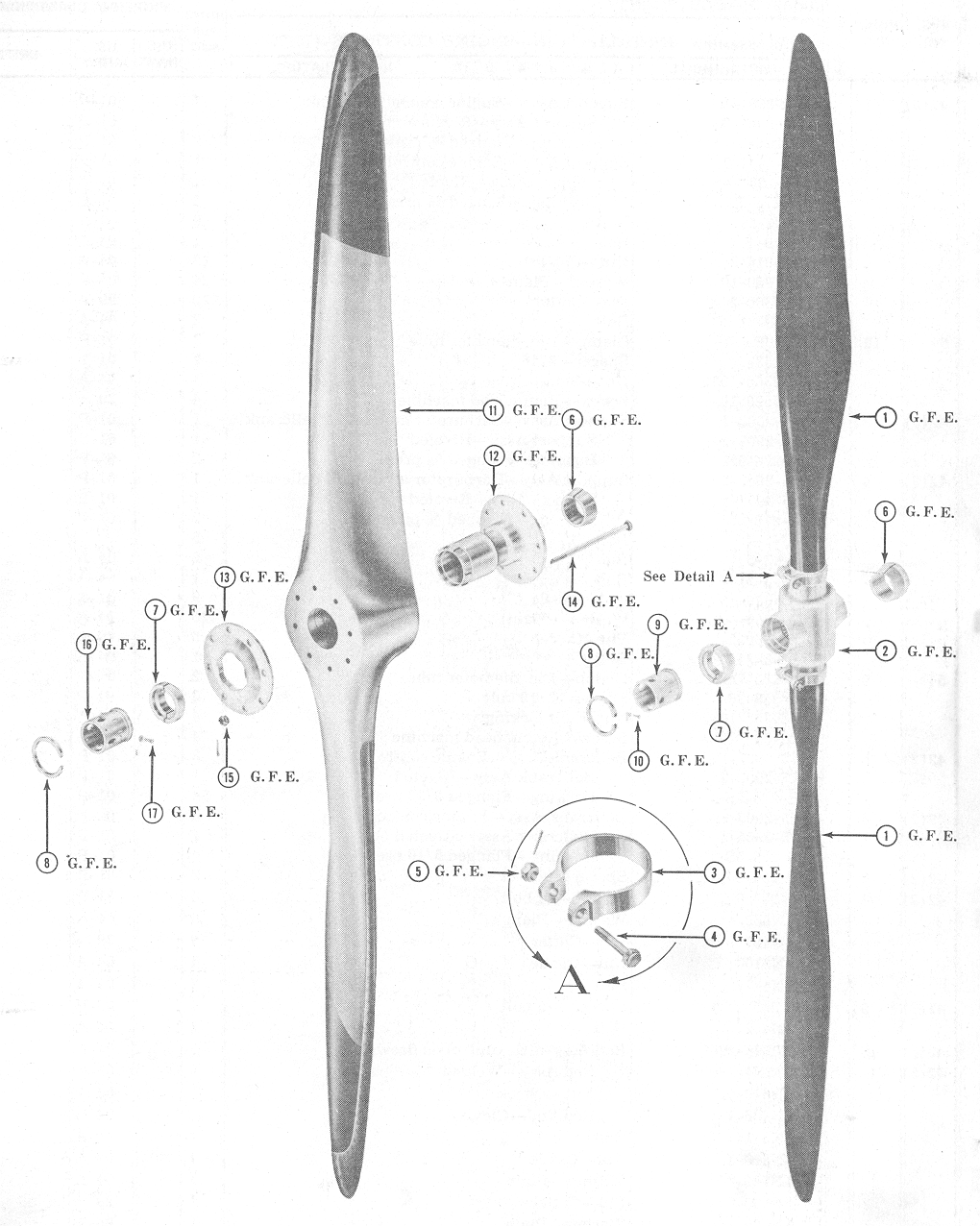

propeller_figure_37a

Part Number = 33A1976 -- Reference Number -- 15 -- Nut-hub bolt, 8 required

Part Number = 40D_1723 -- Reference Number -- 3 -- Clamp-41D5926 hub

Part Number = 41B_2328 -- Reference Number -- 16 -- Nut-propeller hub, retaining

Part Number = 41B_2329_12 -- Reference Number -- 14 -- Bolt-hub attach, 8 required

Part Number = 41D_2327 -- Reference Number -- 13 -- Clamp-front half hub

Part Number = 41D5926 -- Reference Number -- 2 -- Hub assembly-propeller

Part Number = 41G2325_9 -- Reference Number -- 12 -- Hub assembly-complete

Part Number = 41G2326 -- Reference Number -- 12 -- Hub-bare

Part Number = 98JA Series -- Reference Number -- 11 -- Propeller-less hub assembly

Part Number = AN394_17 -- Reference Number -- 10 -- Clevis pin

Part Number = AN394_19 -- Reference Number -- 17 -- Clevis pin

Part Number = AN5001_9 -- Reference Number -- 5 -- Nut-AN5000-9 bolt

Part Number = AN5007_20 -- Reference Number -- 7 -- Cone-propeller hub, front (steel)

Part Number = SS_135_6 -- Reference Number -- 1 -- Blade-propeller
