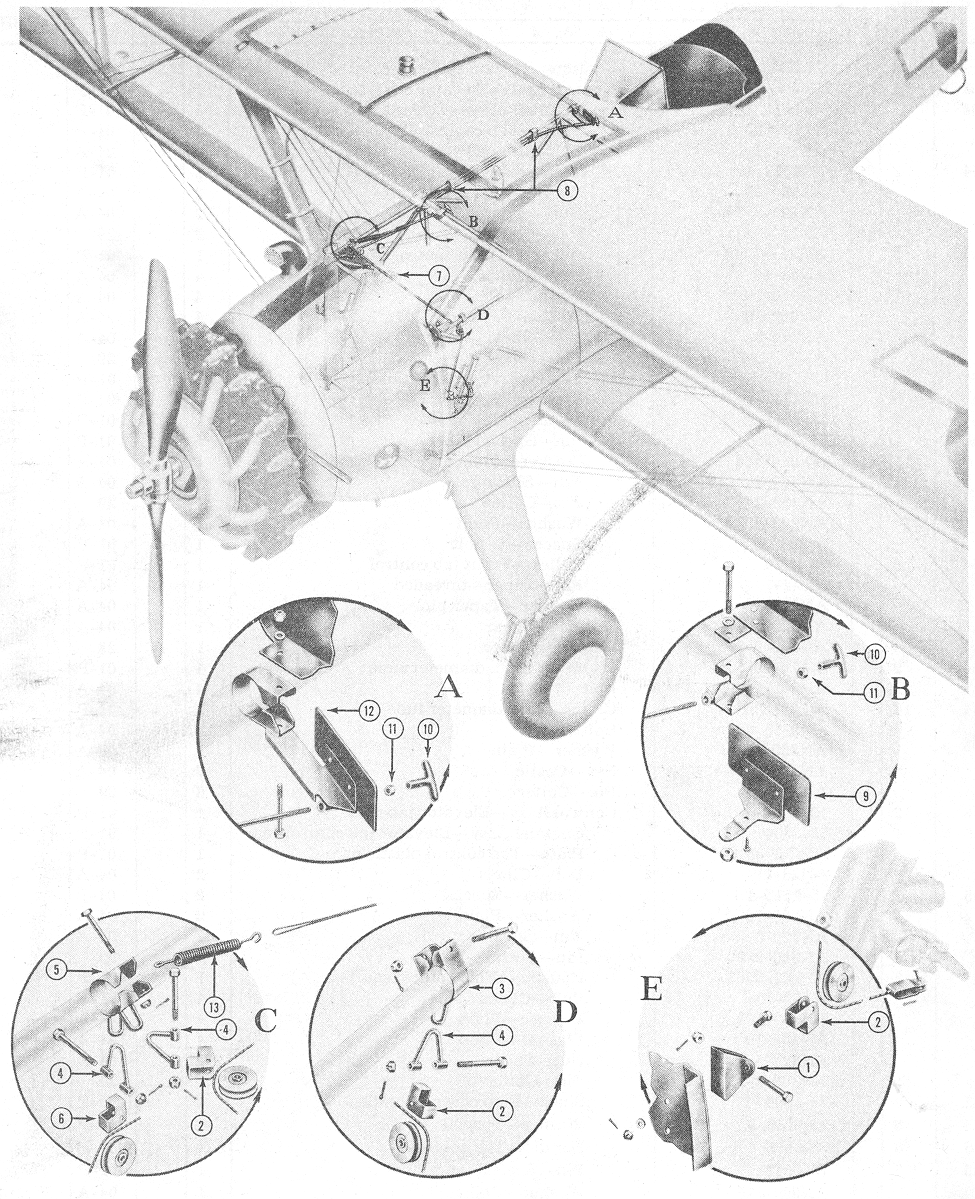

parking_brake_figure_55a

Part Number = 73_2813_1 -- Reference Number -- 10 -- Handle-tee, parking brake pulley, ref. B, 1 required

Part Number = 75_2818_1 -- Reference Number -- 6 -- Guard-AN210-1A pulley, ref. C, 1 required

Part Number = 75_2818_2 -- Reference Number -- 2 -- Guard-AN210-1A pulley, ref. D, 1 required

Part Number = 75_2819 -- Reference Number -- 1 -- Bracket-starter control pulley, ref. C & D, 2 required

Part Number = 75_3431 -- Reference Number -- 4 -- Support-parking brake control pulley, ref. D, 1 required

Part Number = 75_3443_1 -- Reference Number -- 5 -- Clamp-pulley clevis support, ref. C, 1 required

Part Number = 75_3443_2 -- Reference Number -- 3 -- Clamp-pulley clevis support, ref. D, 1 required

Part Number = AG75_3478 -- Reference Number -- 13 -- Spring-parking brake control, ref. C, 1 required

Part Number = AN315_3 -- Reference Number -- 11 -- Nut-tee handle lock, ref. B

Part Number = B75_3405 -- Reference Number -- 12 -- Support assembly-rear name plate parking brake control, ref. A

Part Number = B75_3406 -- Reference Number -- 9 -- Support assembly-parking brake front name plate

Part Number = B75_3401 -- Reference Number -- 7 -- Cable assembly-parking brake control, 1 required

Part Number = S_101_D4 -- Reference Number -- 8 -- Tube clip-2 required
