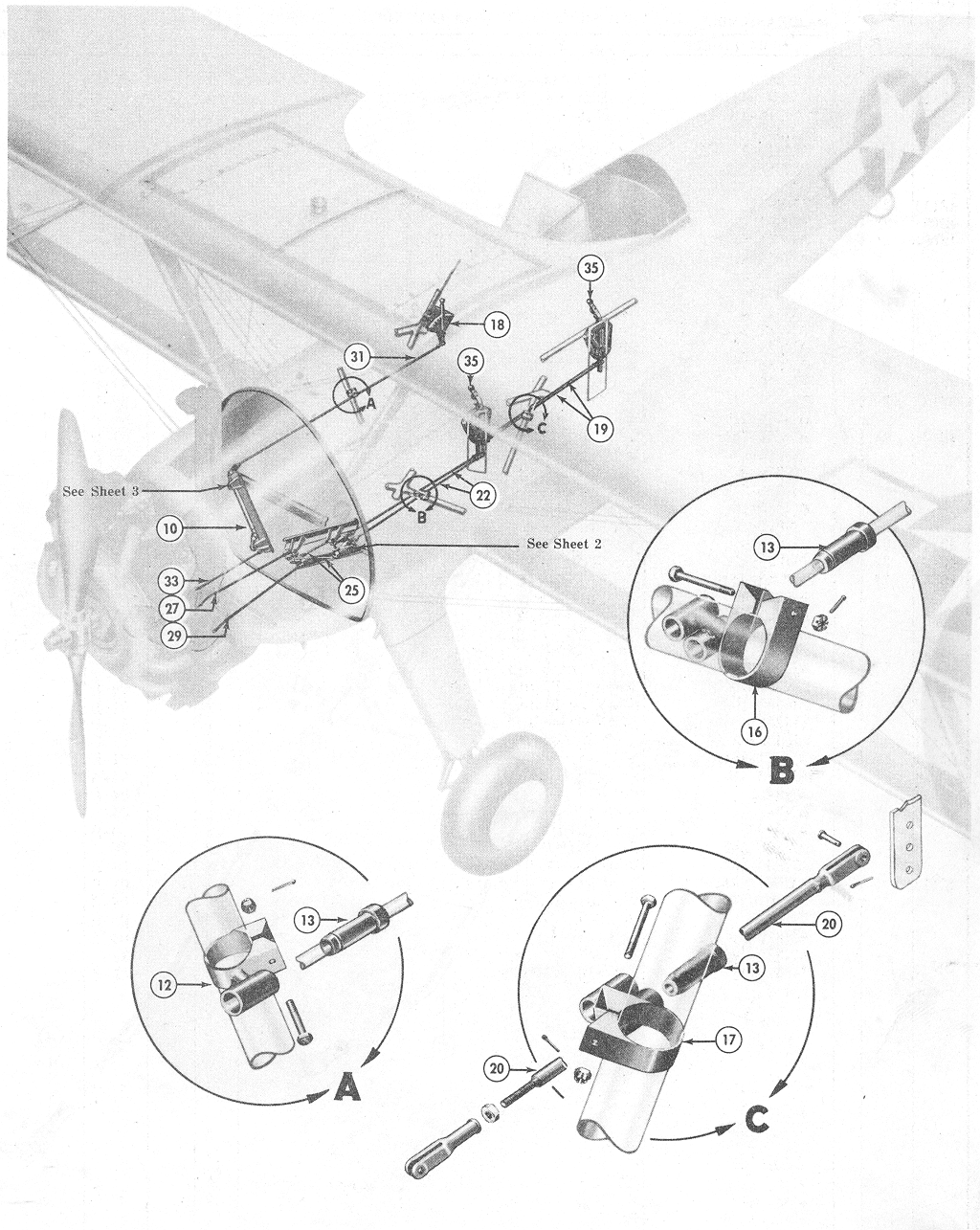

engine_control_figure_38a

Part Number = 73_2909 -- Reference Number -- 21 -- Grommet-control rod, 3 required, R670, R680

Part Number = A75N1_2911 -- Reference Number -- 35 -- Throttle quadrant-engine control, 2 required

Part Number = AG_S_116 -- Reference Number -- 13 -- Fairlead-3/8" tube, R670, R680, 2 required

Part Number = AG75_2908 -- Reference Number -- 12 -- Bracket assembly-cold air control fairlead, R670, R680

Part Number = AG75_2913 -- Reference Number -- 16 -- Support assembly-engine control rod, front fairlead, R670, R680

Part Number = AG75_2914 -- Reference Number -- 17 -- Support assembly-engine control rod, rear fairlead

Part Number = AG75_2918 -- Reference Number -- 19 -- Rod assembly-engine control intercockpit with adjustment end, R670, R680

Part Number = AG75_2918_2 -- Reference Number -- 20 -- Rod assembly-engine control intercockpit, R670, R680

Part Number = AG75_2920_2 -- Reference Number -- 26 -- Rod assembly-engine control on firewall, R670, R680, 2 required

Part Number = AG75_2921_2 -- Reference Number -- 28 -- Rod assembly-engine control firewall to throttle, R680

Part Number = AG75_2922_2 -- Reference Number -- 30 -- Rod assembly-engine control firewall to mixture, R680

Part Number = AG75_2923 -- Reference Number -- 31 -- Rod assembly-air control cockpit to firewall, R670, R680, with REB-3N

Part Number = AG75_2924 -- Reference Number -- 10 -- Rod assembly-air control on firewall with end, R670, R680

Part Number = AG75_2925 -- Reference Number -- 33 -- Rod assembly-air control firewall to valve, R680 with REB-3N

Part Number = AG75_2925_2 -- Reference Number -- 34 -- Rod assembly-air control firewall to valve, R680

Part Number = AGA75N1_2901_3 -- Reference Number -- 33 -- Rod assembly-air control firewall to valve, R670, with REB-3N

Part Number = AGA75N1_2901_4 -- Reference Number -- 34 -- Rod assembly-air control firewall to valve, R670

Part Number = AGA75N1_2902 -- Reference Number -- 27 -- Rob assembly-engine control to idler mixture & throttle, with REB-3N, R670

Part Number = AGA75N1_2902_2 -- Reference Number -- 28 -- Rob assembly-engine control to idler mixture & throttle, R670
