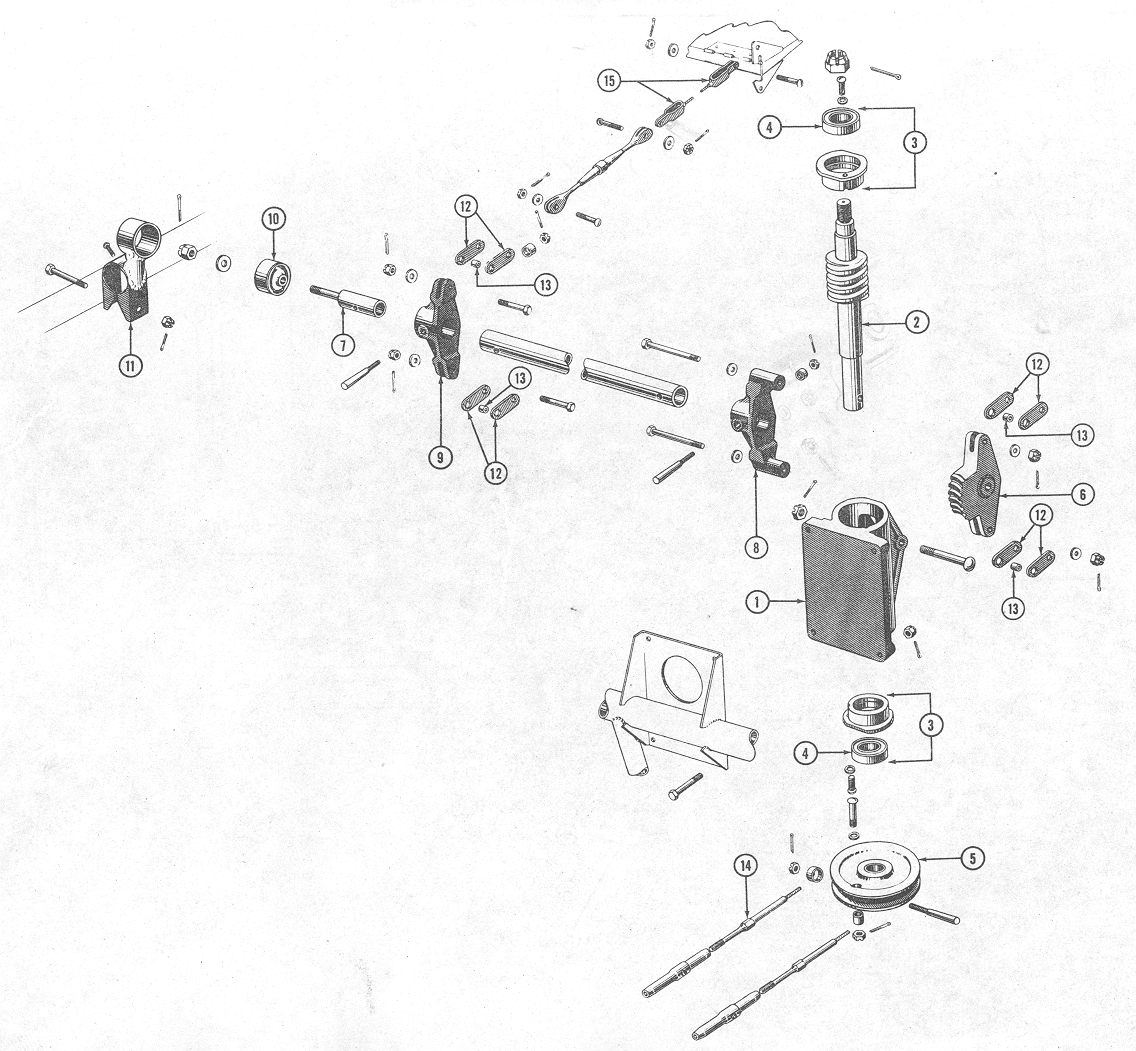

elevator_tab_figure_59a

Part Number = 73_3517 -- Reference Number -- 1 -- Housing-flap control mechanism

Part Number = 73_3518 -- Reference Number -- 2 -- Worm-tab control

Part Number = 73_3519 -- Reference Number -- 3 -- Housing assembly-flap control worm bearing, 2 required

Part Number = 73_3519_1 -- Reference Number -- 3 -- Housing only

Part Number = 75_3511 -- Reference Number -- 7 -- End fitting-tab horn torque shaft

Part Number = 75_3513 -- Reference Number -- 8 -- Horn-tab drive connecting

Part Number = 75_3514 -- Reference Number -- 9 -- Horn-right tab drive

Part Number = 75_3518_1 -- Reference Number -- 12 -- Strap-tab control cables, 8 required

Part Number = 75_3519 -- Reference Number -- 11 -- Bracket assembly-tab horn torque shaft bearing

Part Number = 75_3540 -- Reference Number -- 6 -- Sector-tab control worm gear

Part Number = 75_3541 -- Reference Number -- 13 -- Bushing-steel, 2 required

Part Number = AG75_3547 -- Reference Number -- 5 -- Pulley-tab control mechanism

Part Number = AGA75N1_3507_2S -- Reference Number -- 15 -- Tab cable assembly-non-reverse to tabs, stainless steel, 4 required

Part Number = K_8A -- Reference Number -- 4 -- Replacement bearing-73-3519 housing

Part Number = K_S4 -- Reference Number -- 10 -- Replacement bearing-dual tab drive tube, 1 required
