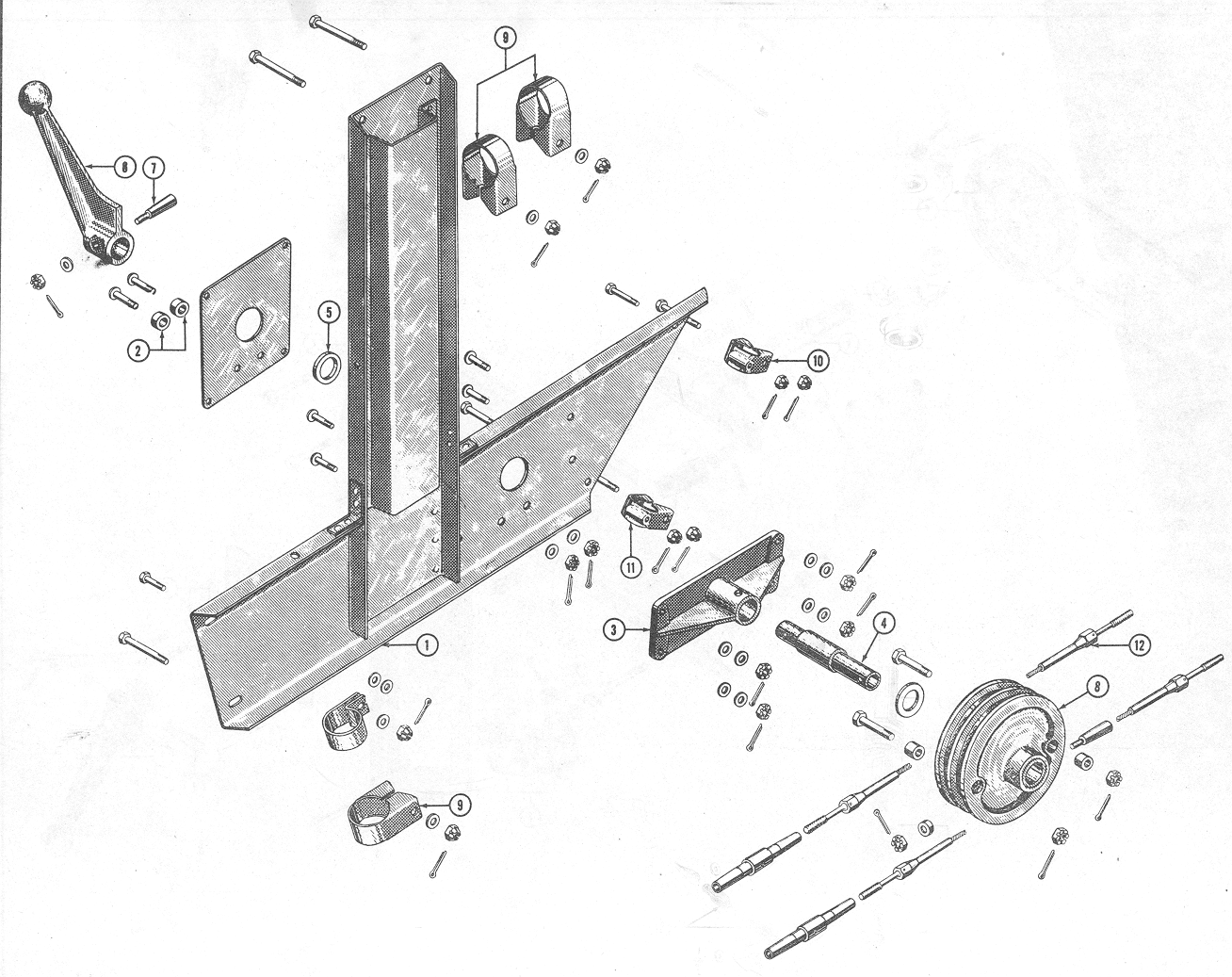

elevator_tab_figure_58a

Part Number = 75_3520_1 -- Reference Number -- 10 -- Clamp assembly-tab control channel attach, upper, 1 required

Part Number = 75_3520_2 -- Reference Number -- 11 -- Clamp assembly-tab control channel attach, lower, 1 required

Part Number = 75_3546 -- Reference Number -- 8 -- Pulley-rear tab control, double

Part Number = AG75_3504 -- Reference Number -- 1 -- Channel assembly-elevator tab control rear

Part Number = AG75_3532 -- Reference Number -- 7 -- Pin-special taper

Part Number = AG75_4513_4 -- Reference Number -- 2 -- Washer-special, 2 required

Part Number = AG75_4513_9 -- Reference Number -- 5 -- Washer-special

Part Number = AGA75_3506 -- Reference Number -- 6 -- Handle-tab control

Part Number = AGA75N1_3508 -- Reference Number -- 3 -- Housing-tab control shaft
