elevator_figure_12a

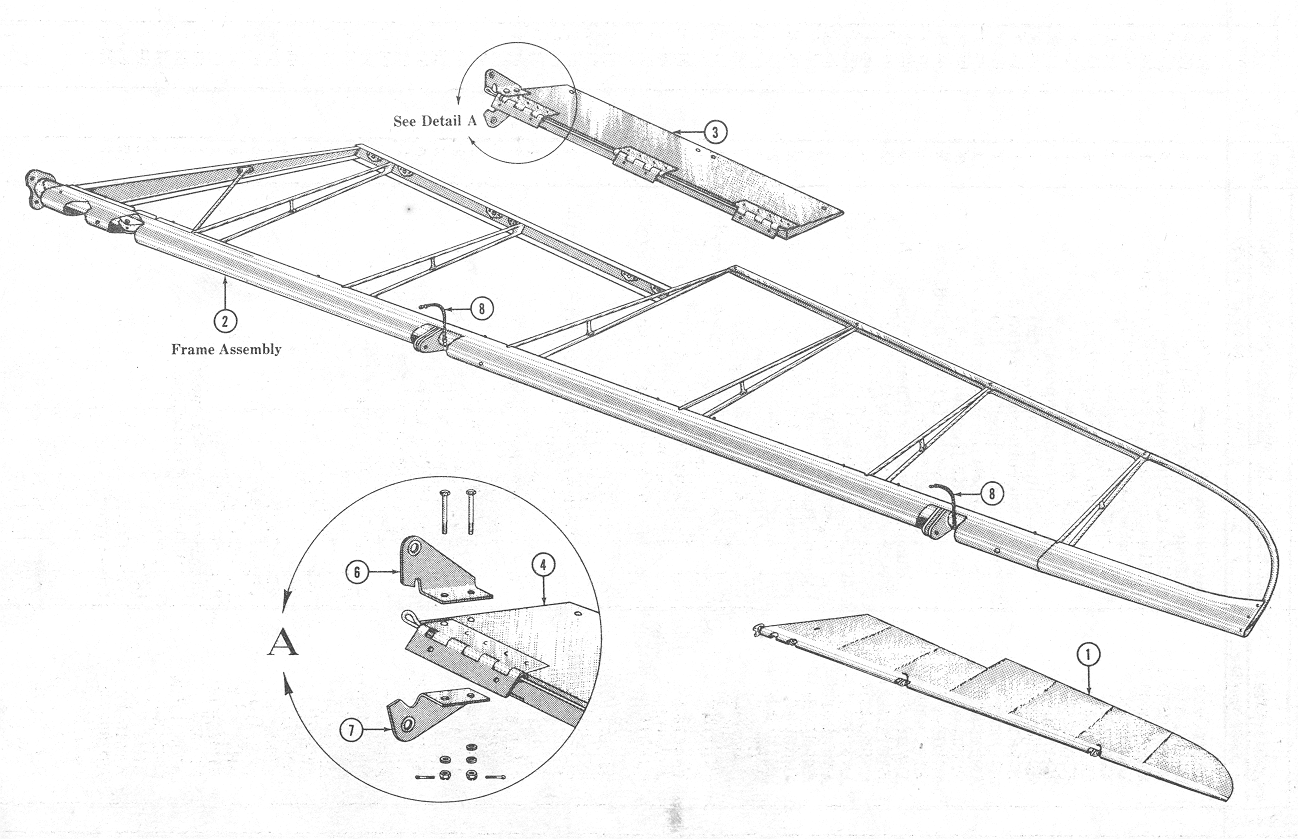

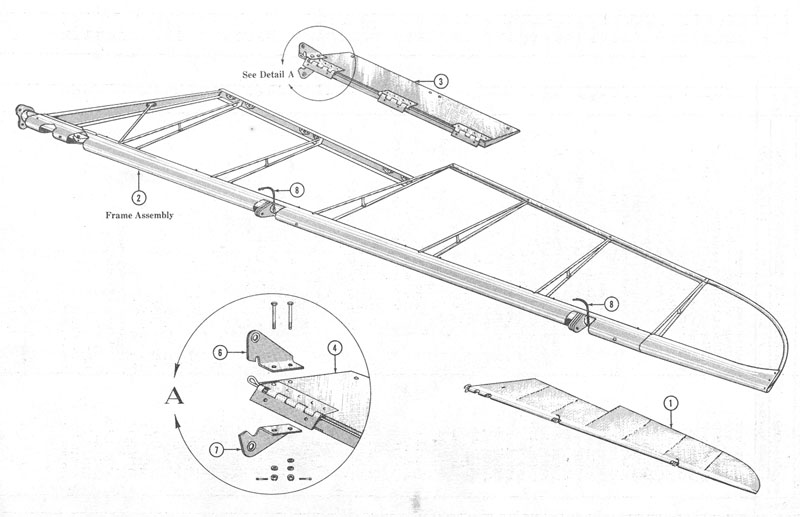

Part Number = 75_1800 -- Reference Number -- 1 -- Elevator assembly-LH covered, C-102, less tabs

Part Number = 75_1800_1 -- Reference Number -- 1 -- Elevator assembly-RH covered, C-102, less tabs

Part Number = 75_1801 -- Reference Number -- 2 -- Elevator assembly-LH uncovered, less tabs

Part Number = 75_1801_1 -- Reference Number -- 2 -- Elevator assembly-RH uncovered, less tabs

Part Number = 75_1813 -- Reference Number -- 3 -- Tab assembly-elevator wood, LH

Part Number = 75_1813_1 -- Reference Number -- 3 -- Tab assembly-elevator wood, RH

Part Number = AG75_1804 -- Reference Number -- 10 -- Root rib-elevator, LH

Part Number = AG75_1804_1 -- Reference Number -- 10 -- Root rib-elevator, RH

Part Number = AG75_1805 -- Reference Number -- 12 -- Cover-leading edge, elevator LH

Part Number = AG75_1805_1 -- Reference Number -- 12 -- Cover-leading edge, elevator RH

Part Number = AG75_1814_5 -- Reference Number -- 6 -- Horn assembly-elevator trim tab control, upper RH

Part Number = AG75_1814_6 -- Reference Number -- 6 -- Horn assembly-elevator trim tab control, upper LH

Part Number = AG75_1814_7 -- Reference Number -- 7 -- Horn assembly-elevator trim tab control, lower RH

Part Number = AG75_1814_8 -- Reference Number -- 7 -- Horn assembly-elevator trim tab control, lower LH

Part Number = AG75_1816 -- Reference Number -- 11 -- Spar-elevator trim tab attach, LH

Part Number = AG75_1816_1 -- Reference Number -- 11 -- Spar-elevator trim tab attach, RH

Part Number = AG75_1818 -- Reference Number -- 9 -- Trailing edge aluminum-elevator LH & RH

Part Number = AG75_1825 -- Reference Number -- 13 -- Horn assembly-elevator control

Part Number = AGA75N1_1813_2 -- Reference Number -- 4 -- Tab assembly-elevator metal, LH

Part Number = AGA75N1_1813_3 -- Reference Number -- 4 -- Tab assembly-elevator metal, RH
