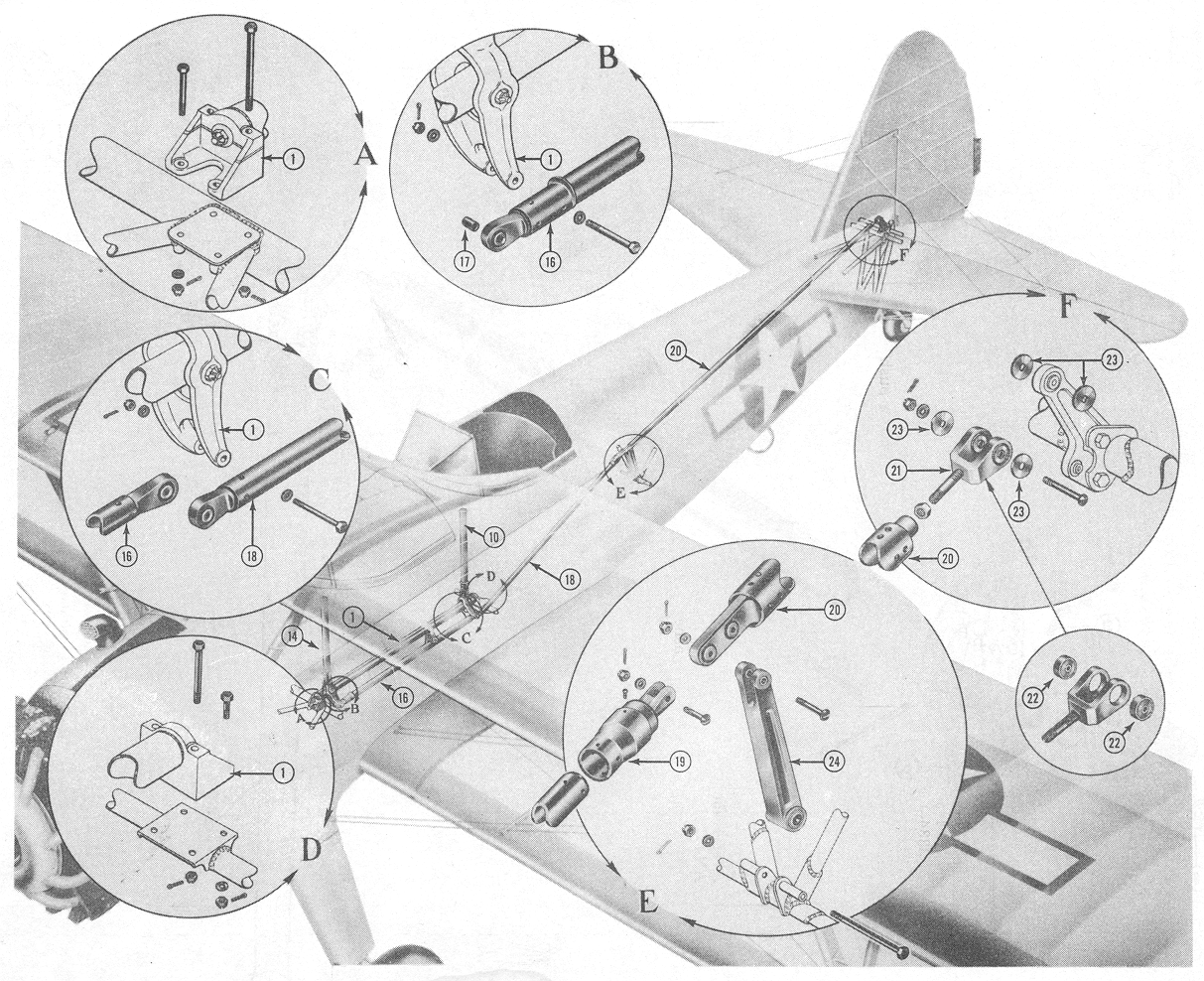

elevator_control_figure_47a

Part Number = 75_3331 -- Reference Number -- 24 -- Idler assembly-elevator push pull tube

Part Number = 75_3332 -- Reference Number -- 18 -- Tube assembly-elevator push pull front

Part Number = 75_3333_1 -- Reference Number -- 20 -- Tube assembly-elevator push pull rear

Part Number = 75_3342 -- Reference Number -- 16 -- Tube assembly-interstick push pull

Part Number = AG75_3328 -- Reference Number -- 22 -- Bushing-elevator push pull tube, rubber, 2 required

Part Number = AG75_3332 -- Reference Number -- 18 -- Tube assembly-elevator push pull front

Part Number = AG75_3333_1 -- Reference Number -- 20 -- Tube assembly-elevator push pull rear

Part Number = AG75_3334_5 -- Reference Number -- 19 -- Terminal assembly-front (AG75-3332 tube)

Part Number = AG75_3339 -- Reference Number -- 21 -- Terminal assembly-with bushings, elevator push pull tube, rear

Part Number = AG75_3342 -- Reference Number -- 16 -- Tube assembly-interstick push pull

Part Number = AG75_4513_33 -- Reference Number -- 23 -- Washer-special, 4 required

Part Number = AGS_254_31 -- Reference Number -- 17 -- Spacer-1/4" bolt, 75-3342 tube
