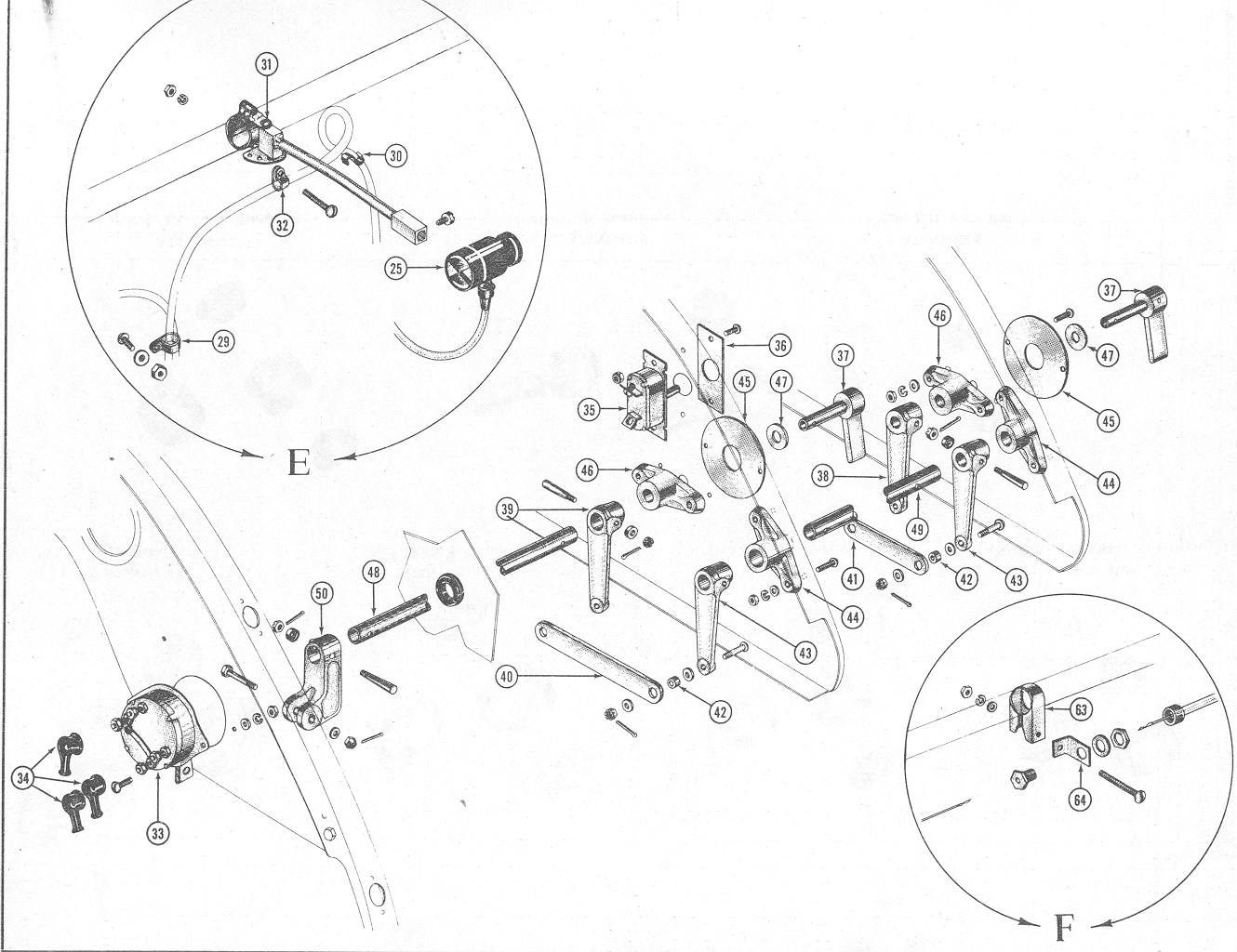

electrical_system_figure_66a

Part Number = 065_319 -- Reference Number -- 34 -- Spark plug nipple-ignitino switch, 3 required

Part Number = 75_3170_3 -- Reference Number -- 43 -- Lever-torque tube

Part Number = 75_3907 -- Reference Number -- 50 -- Attachment-ignitino switch handle

Part Number = A75N1_3905 -- Reference Number -- 45 -- Plate-ignition switch name, 2 required

Part Number = A75N1_3945 -- Reference Number -- 31 -- Bracket assembly-instrument light mounting

Part Number = AG75_3140_2 -- Reference Number -- 41 -- Link cock control arm connecting, rear

Part Number = AG75_3140_3 -- Reference Number -- 40 -- Link-cock control arm connecting, front

Part Number = AG75_3905 -- Reference Number -- 37 -- Handle assembly-ignition switch control, 2 required

Part Number = AG75_3910_1 -- Reference Number -- 48 -- Shaft-ignition switch torque, 25-12/32" L

Part Number = AG75_3910_2 -- Reference Number -- 49 -- Shaft-ignition switch torque, 37-5/8" L

Part Number = AG75_3913_1 -- Reference Number -- 44 -- Bearing-shaft, 2 required

Part Number = AG75_3913_2 -- Reference Number -- 46 -- Bearing-shaft, 3/8" hole, 2 required

Part Number = AG75_4513_21 -- Reference Number -- 47 -- Washer-special, 2 required

Part Number = AGS_205_9S -- Reference Number -- 42 -- Replacement bushing-5/16" o.d. bearing

Part Number = E75_3941_2 -- Reference Number -- 33 -- A-9 switch-ignition, substitute

Part Number = E75N1_3910 -- Reference Number -- 36 -- Name plate-oil dilution switch
