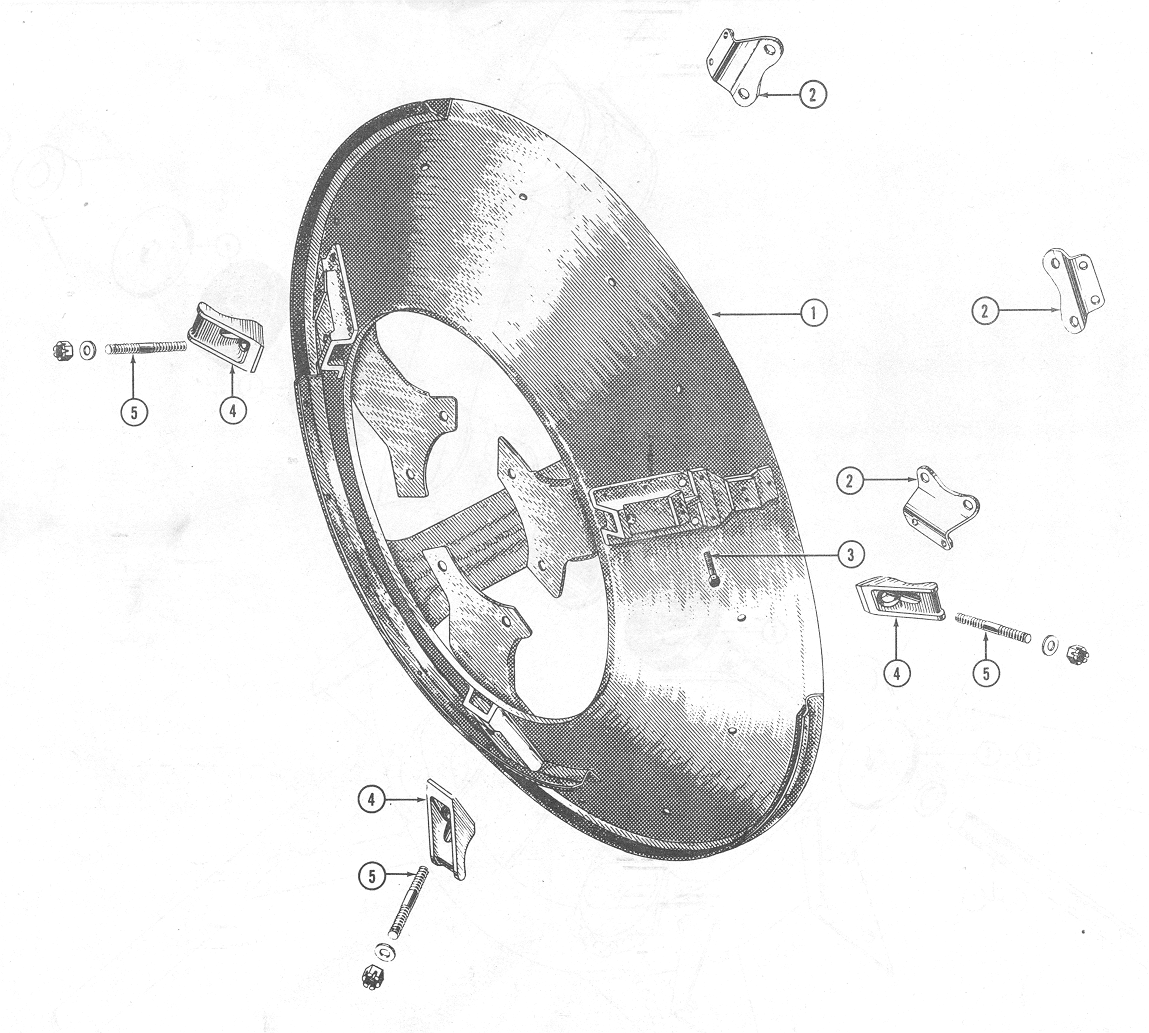

cowl_cover_figure_33a

Part Number = 75_2438 -- Reference Number -- 1 -- Cowl assembly-R680 nose

Part Number = 75_2442 -- Reference Number -- 3 -- Bolt-1/4" -28 hex head drilled, 6 required

Part Number = AG75_2440 -- Reference Number -- 2 -- Bracket-nose cowl mount support, 3 required

Part Number = AGE75N1_2406 -- Reference Number -- 5 -- Stud-3 required

Part Number = AGE75N1_2804 -- Reference Number -- 4 -- Clamp-exhaust ring, 3 required
