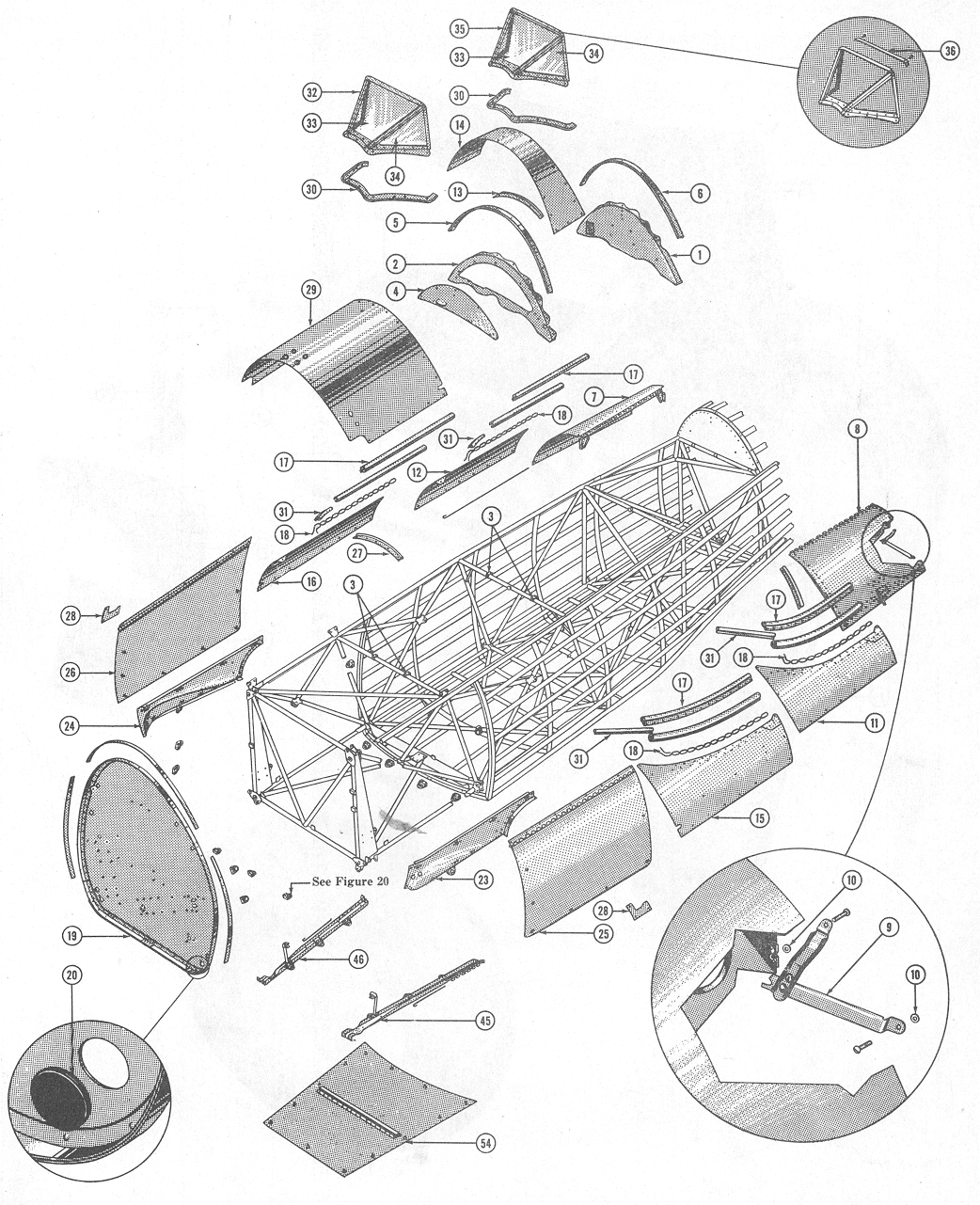

cowl_cover_figure_20a

Part Number = 75_2317 -- Reference Number -- 25 -- Door assembly-fuselage side cowl, LH

Part Number = 75_2317_1 -- Reference Number -- 26 -- Door assembly-fuselage side cowl, RH

Part Number = 75_2400 -- Reference Number -- 9 -- Support-baggage compartment door folding

Part Number = 75_2429 -- Reference Number -- 10 -- Spacer-baggage compartment door brace

Part Number = AG75_2310 -- Reference Number -- 19 -- Firewall assembly-stainless steel, R680 or R670

Part Number = AG75_2319 -- Reference Number -- 23 -- Support assembly-fuselage side cowl, LH, anodized

Part Number = AG75_2319_1 -- Reference Number -- 24 -- Support assembly-fuselage side cowl, RH, anodized

Part Number = AG75_2336 -- Reference Number -- 28 -- Plate-cowl filler, 2 required

Part Number = AG75_2354 -- Reference Number -- 15 -- Cowl assembly-front cockpit, LH

Part Number = AG75_2354_1 -- Reference Number -- 16 -- Cowl assembly-front cockpit, RH

Part Number = AG75_2355 -- Reference Number -- 14 -- Cowl-intercockpit, anodized

Part Number = AG75_2356 -- Reference Number -- 11 -- Cowl assembly-rear cockpit, LH

Part Number = AG75_2356_1 -- Reference Number -- 12 -- Cowl assembly-rear cockpit, RH, anodized

Part Number = AG75_2356_1B -- Reference Number -- 12 -- Cowl assembly-rear cockpit, RH

Part Number = AG75_2356 -- Reference Number -- 11 -- Cowl assembly-rear cockpit, LH, anodized

Part Number = AG75_2358 -- Reference Number -- 8 -- Door assembly-baggage compartment with lock assembly

Part Number = AG75_2359 -- Reference Number -- 7 -- Cowl assembly-baggage compartment

Part Number = AG75_2367 -- Reference Number -- 2 -- Bulkhead assembly-cockpit cowl front

Part Number = AG75_2368 -- Reference Number -- 1 -- Bulkhead assembly-cockpit cowl rear

Part Number = AG75_2369 -- Reference Number -- 4 -- Door-instrument inspection (used with AG75-2367)

Part Number = AG75_2377 -- Reference Number -- 32 -- Windshield assembly-front, with glass

Part Number = AG75_2377_1 -- Reference Number -- 32 -- Windshield assembly-front, less glass

Part Number = AG75_2377_2 -- Reference Number -- 35 -- Windshield assembly-rear with glass

Part Number = AG75_2377_3 -- Reference Number -- 35 -- Windshield assembly-rear less glass

Part Number = AG75_2378_1 -- Reference Number -- 33 -- Replacement safety glass-front, for both front & rear windshields

Part Number = AG75_2378_2 -- Reference Number -- 34 -- Replacement safety glass-sides, 2 required, for both front & rear windshields

Part Number = AG75_2412 -- Reference Number -- 54 -- Cowl assembly-fuselage bottom

Part Number = AG75_2413 -- Reference Number -- 45 -- Support assembly-with dzus bracket, less AG75-2411, bottom fuselage cowl, LH

Part Number = AG75_2413_1 -- Reference Number -- 46 -- Support assembly-with dzus bracket, less AG75-2411, bottom fuselage cowl, RH

Part Number = AG75_2434 -- Reference Number -- 36 -- Channel-stainless steel reinforcement, rear windshield

Part Number = AGB75_2305 -- Reference Number -- 2 -- Bulkhead assembly-cockpit cowl front

Part Number = AGB75_2306 -- Reference Number -- 4 -- Door-instrument inspection (used with AGB75-2305)

Part Number = AGE75N1_2305 -- Reference Number -- 29 -- Cowl assembly-upper front fuselage cowl

Part Number = AGS_110_D51_a -- Reference Number -- 3 -- Clamp-1 1/4" diameter tube, 4 required

Part Number = E75_2363 -- Reference Number -- 27 -- Roll assembly-front cockpit front

Part Number = E75_2364 -- Reference Number -- 13 -- Roll assembly-rear cockpit front

Part Number = E75_2365 -- Reference Number -- 6 -- Roll assembly-rear cockpit rear

Part Number = E75_2366 -- Reference Number -- 5 -- Roll assembly-front cockpit rear

Part Number = E75N1_2302_1 -- Reference Number -- 18 -- Thong-leather, AGE75N1-2302-2 attach, 4 required

Part Number = E75N1_2302_17 -- Reference Number -- 31 -- Felt roll assembly-front & rear cockpit cowls, 4 requried

Part Number = E75N1_2302_18 -- Reference Number -- 30 -- Cord roll assembly-front & rear windshield attach

Part Number = E75N1_2302_2 -- Reference Number -- 17 -- Crash pad cover
