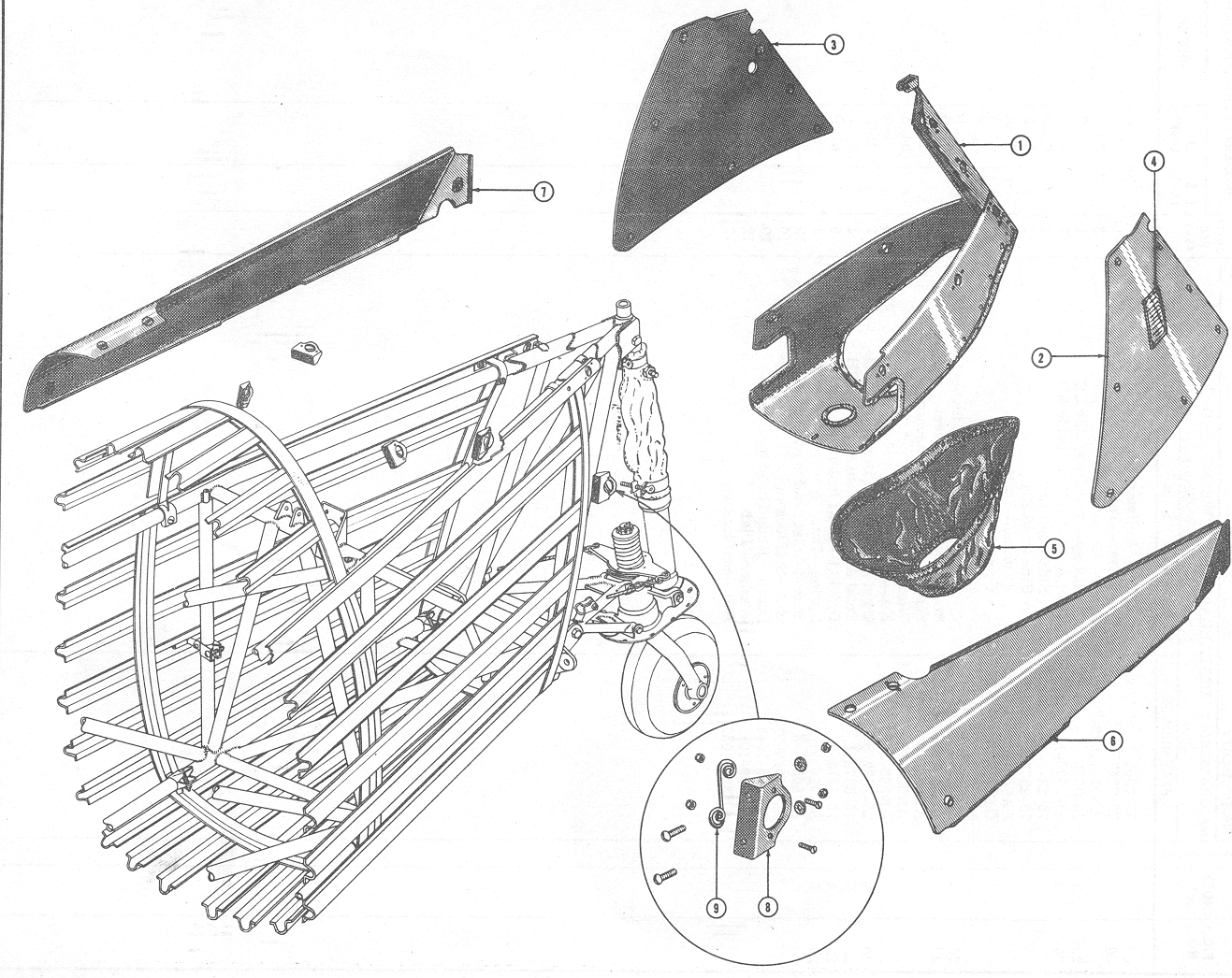

cowl_cover_figure_21a

Part Number = A75N1_2701 -- Reference Number -- 4 -- Instruction plate-tailwheel, for AG75-2370 cowl

Part Number = AG75_2347 -- Reference Number -- 1 -- Cowl assembly-tailwheel lower (tail cone)

Part Number = AG75_2370 -- Reference Number -- 2 -- Cowl assembly-tailwheel side, LH

Part Number = AG75_2370_1 -- Reference Number -- 3 -- Cowl assembly-tailwheel side, RH

Part Number = AG75_2371_5 -- Reference Number -- 5 -- Boot assembly-10" tailwheel

Part Number = AG75_2372 -- Reference Number -- 6 -- Cowl assembly-stabilizer to fin, LH, anodized

Part Number = AG75_2372_1 -- Reference Number -- 7 -- Cowl assembly-stabilizer to fin, RH, anodized

Part Number = AG75_2416 -- Reference Number -- 8 -- Dzus bracket assembly-cowl fastener support, 5 required

Part Number = S6_425 -- Reference Number -- 9 -- Spring-dzus, AG75-2416 bracket, 5 required
