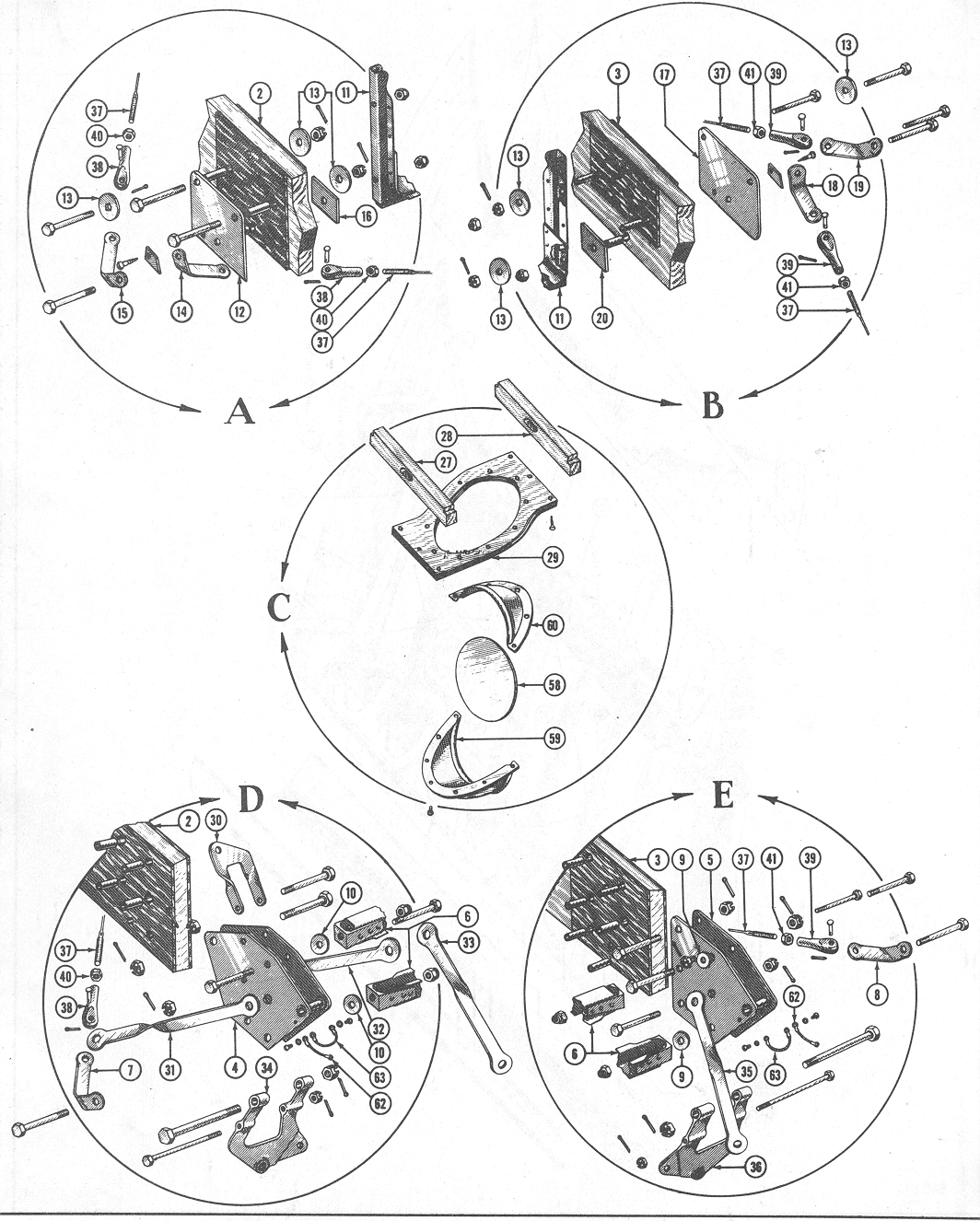

center_section_figure_9a

Part Number = 2AJ_8_8 -- Reference Number -- 63 -- Jumper-bonding, 4 required

Part Number = 75_1315 -- Reference Number -- 31 -- Lug-center section roll wire front, 2 required

Part Number = 75_1316 -- Reference Number -- 32 -- Lug-center section roll wire rear, 2 required

Part Number = 75_1317 -- Reference Number -- 33 -- Lug-upper front landing wire

Part Number = 75_1318 -- Reference Number -- 35 -- Lug-upper rear landing wire, 2 required

Part Number = 75_1319 -- Reference Number -- 4 -- Plate-center section front root, LH, 2 req.

Part Number = 75_1319_1 -- Reference Number -- 4 -- Plate-center section front root, RH, 2 req.

Part Number = 75_1322 -- Reference Number -- 5 -- Plate-center section rear root, LH, 2 req.

Part Number = 75_1322_1 -- Reference Number -- 5 -- Plate-center section rear root, RH, 2 req.

Part Number = 75_1323 -- Reference Number -- 12 -- Plate-center section, center front

Part Number = 75_1325 -- Reference Number -- 58 -- Mirror-rear view

Part Number = 75_1329 -- Reference Number -- 17 -- Plate-center section, center rear

Part Number = 75_1339 -- Reference Number -- 5 -- Plate assembly-center section rear root, LH

Part Number = 75_1339_1 -- Reference Number -- 5 -- Plate assembly-center section rear root, RH

Part Number = 75_1340 -- Reference Number -- 4 -- Plate assembly-center section front root, LH

Part Number = 75_1340_1 -- Reference Number -- 4 -- Plate assembly-center section front root, RH

Part Number = 75_1347 -- Reference Number -- 30 -- Lug-hoisting sling, 2 required

Part Number = 75_1348 -- Reference Number -- 20 -- Plate-center section inside, LH

Part Number = 75_1348_1 -- Reference Number -- 16 -- Plate-center section inside, RH

Part Number = 75_1356 -- Reference Number -- 14 -- Lug-left front center drag wire

Part Number = 75_1357 -- Reference Number -- 15 -- Lug-right front center drag wire

Part Number = 75_1359 -- Reference Number -- 18 -- Lug-left rear, center drag wire

Part Number = 75_1360 -- Reference Number -- 19 -- Lug-right rear, center drag wire

Part Number = 75_1370 -- Reference Number -- 34 -- Fitting-front center section strut, 2 required

Part Number = 75_1372 -- Reference Number -- 36 -- Fitting-rear center section strut, 2 required

Part Number = 75_1374 -- Reference Number -- 8 -- Lug-end rear drag wire, LH

Part Number = 75_1374_1 -- Reference Number -- 8 -- Lug-end rear drag wire, RH

Part Number = 75_1375 -- Reference Number -- 7 -- Lug-end front drag wire, LH

Part Number = 75_1375_1 -- Reference Number -- 7 -- Lug-end front drag wire, RH

Part Number = AG75_1364 -- Reference Number -- 27-29 -- Frame assembly-rear view mirror support

Part Number = AG75_1365 -- Reference Number -- 59 -- Holder-rear view mirror, front

Part Number = AG75_1366 -- Reference Number -- 60 -- Holder-rear view mirror, rear

Part Number = AG75_4513_25 -- Reference Number -- 10 -- Washer-special, 4 req.

Part Number = AG75_4513_7 -- Reference Number -- 13 -- Washer-special, 8 required

Part Number = AG75_4520_1 -- Reference Number -- 4 -- Bushing-double shoulder type, 1 req.

Part Number = AG75_4520_2 -- Reference Number -- 5 -- Bushing-double shoulder type, 1 req.

Part Number = AN315_4L -- Reference Number -- 41 -- Nut-clevis terminal, LH thread, 4 required

Part Number = AN315_4R -- Reference Number -- 40 -- Nut-clevis terminal, RH thread, 4 required

Part Number = AN665_34L -- Reference Number -- 39 -- Clevis terminal-LH thread, 4 req.

Part Number = AN665_34R -- Reference Number -- 38 -- Clevis terminal-RH thread, 4 req.

Part Number = AN704A_4000 -- Reference Number -- 37 -- Tie rod-internal 3400# 1/4-28, 4 required

Part Number = AN704AC_4000 -- Reference Number -- 37 -- Tie rod-internal 3400# ?-28, 4 required, less ends
