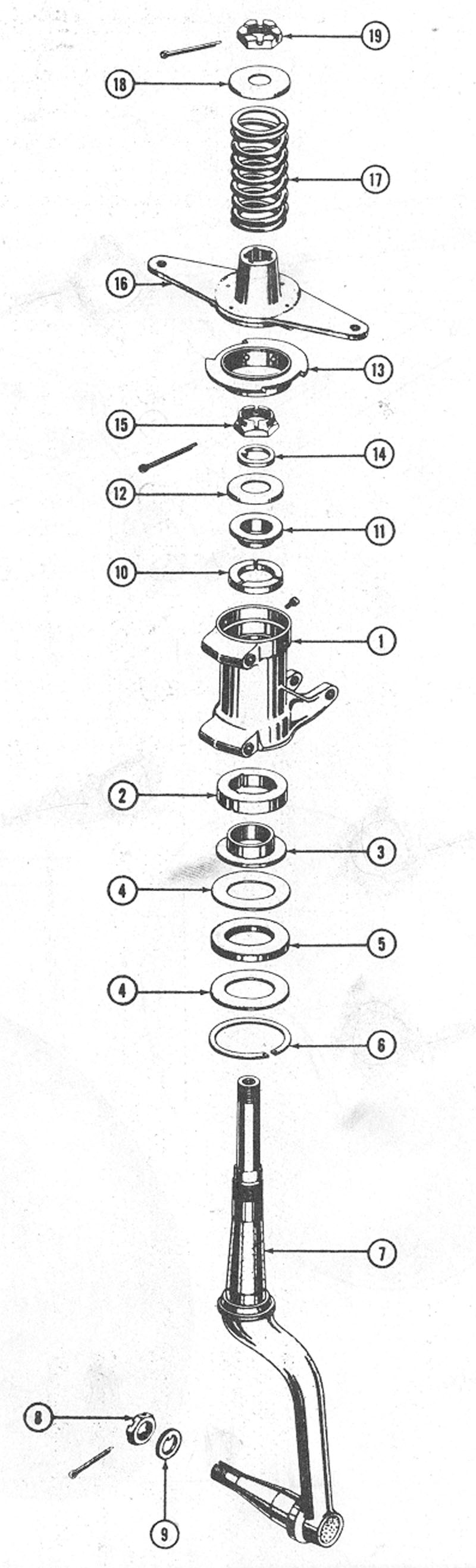

tailwheel_figure_30a

Part Number = 57593 -- Reference Number -- 7 -- Knuckle-tailwheel

Part Number = 111_S_8 -- Reference Number -- 15 -- Nut-upper bearing retainer

Part Number = A75N1_4511_1 -- Reference Number -- 10 -- Bearing-tailwheel spindle upper

Part Number = A75N1_4511_2 -- Reference Number -- 11 -- Race-tailwheel spindle upper

Part Number = AG_114 -- Reference Number -- 20 -- Spline shaft-stearable

Part Number = AG107_S_7 -- Reference Number -- 4 -- Washer-felt retainer, 2 required

Part Number = AG108_S_9 -- Reference Number -- 5 -- Washer-felt

Part Number = AG110_S_7 -- Reference Number -- 14 -- Washer-upper bearing retainer

Part Number = AG110_S_9 -- Reference Number -- 9 -- Washer-tailwheel axle

Part Number = AG51489 -- Reference Number -- 18 -- Washer cup-spring retainer

Part Number = AG51533 -- Reference Number -- 12 -- Cup-grease retainer

Part Number = AG52901 -- Reference Number -- 16 -- Mast assembly-stearable

Part Number = AG52903 -- Reference Number -- 17 -- Spring-tailwheel post

Part Number = AG55184 -- Reference Number -- 13 -- Support-stearable mast

Part Number = AG75_2703 -- Reference Number -- 1 -- Tail post casting-tailwheel knuckle

Part Number = AG75_2711 -- Reference Number -- 2 -- Bearing-friction, tailwheel spindle lower

Part Number = AG75_2711_1 -- Reference Number -- 3 -- Plate-thrust friction

Part Number = AN320_10 -- Reference Number -- 8 -- Nut-shear, tailwheel axle

Part Number = AN320_12 -- Reference Number -- 19 -- Nut-shear, 52903 spring retainer
