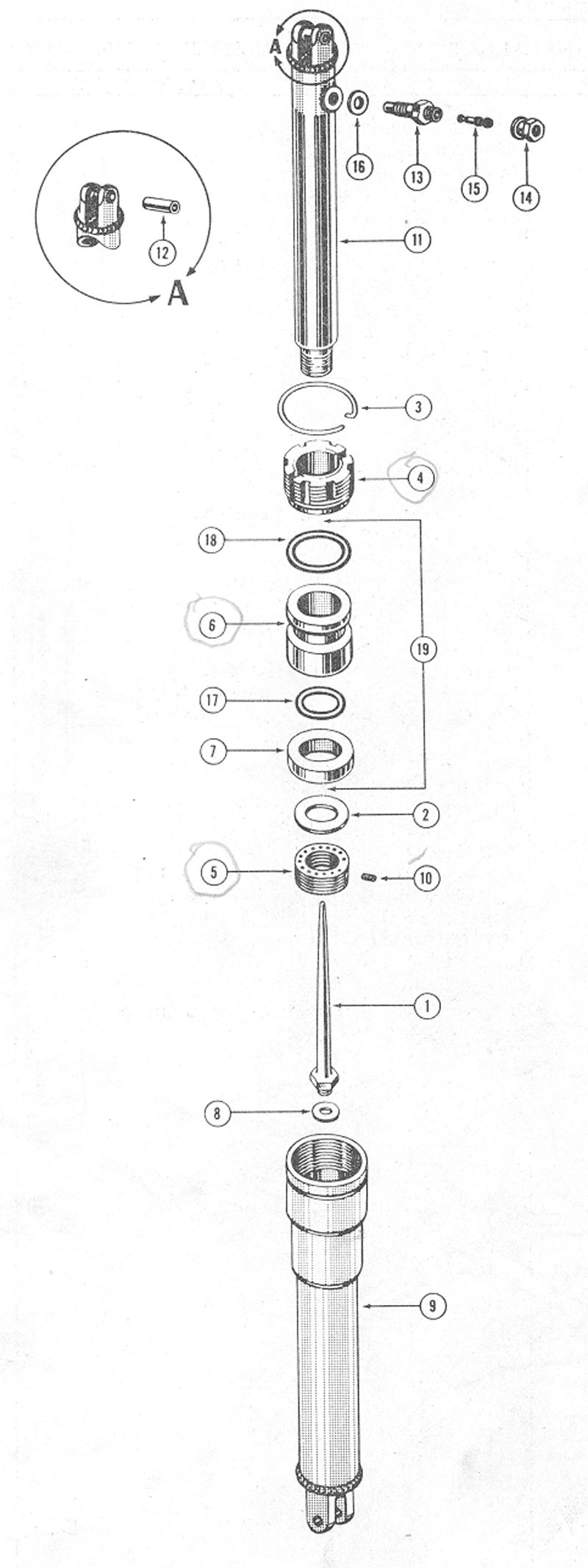

tailwheel_figure_29a

Part Number = 1124 -- Reference Number -- 8 -- Lock washer

Part Number = 75_2722 -- Reference Number -- 1 -- Pin-metering, tailwheel shock absorber

Part Number = 75_2723 -- Reference Number -- 2 -- Valve-recoil

Part Number = 75_2724 -- Reference Number -- 3 -- Ring-lock

Part Number = 75_2726 -- Reference Number -- 4 -- Nut assembly-bearing

Part Number = 75_2730 -- Reference Number -- 5 -- Head-piston

Part Number = 75_2732 -- Reference Number -- 11 -- Tube assembly-piston

Part Number = 75_2733 -- Reference Number -- 9 -- Tube assembly-cylinder

Part Number = 75_2739 -- Reference Number -- 10 -- Screw-lock

Part Number = AG75_2726 -- Reference Number -- 4 -- Nut assembly-bearing, O-ring type

Part Number = AG75_2731 -- Reference Number -- 7 -- Chevron V ring-tail strut packing, 4 required

Part Number = AG75_2745 -- Reference Number -- 6 -- Chevron kit-tail oleo

Part Number = AG75_2745M -- Reference Number -- 6 -- Packing assembly-tail oleo

Part Number = AN809_1 -- Reference Number -- 15 -- Core-high pressure air valve

Part Number = AN812_1 -- Reference Number -- 13 -- Body-high pressure air valve

Part Number = AN813_1 -- Reference Number -- 14 -- Cap-high pressure air valve

Part Number = AN901_5C -- Reference Number -- 16 -- Gasket-metal tube connecting seal

Part Number = AG75_2702_S -- Reference Number -- 7 -- O-ring type B seal kit-tail strut
