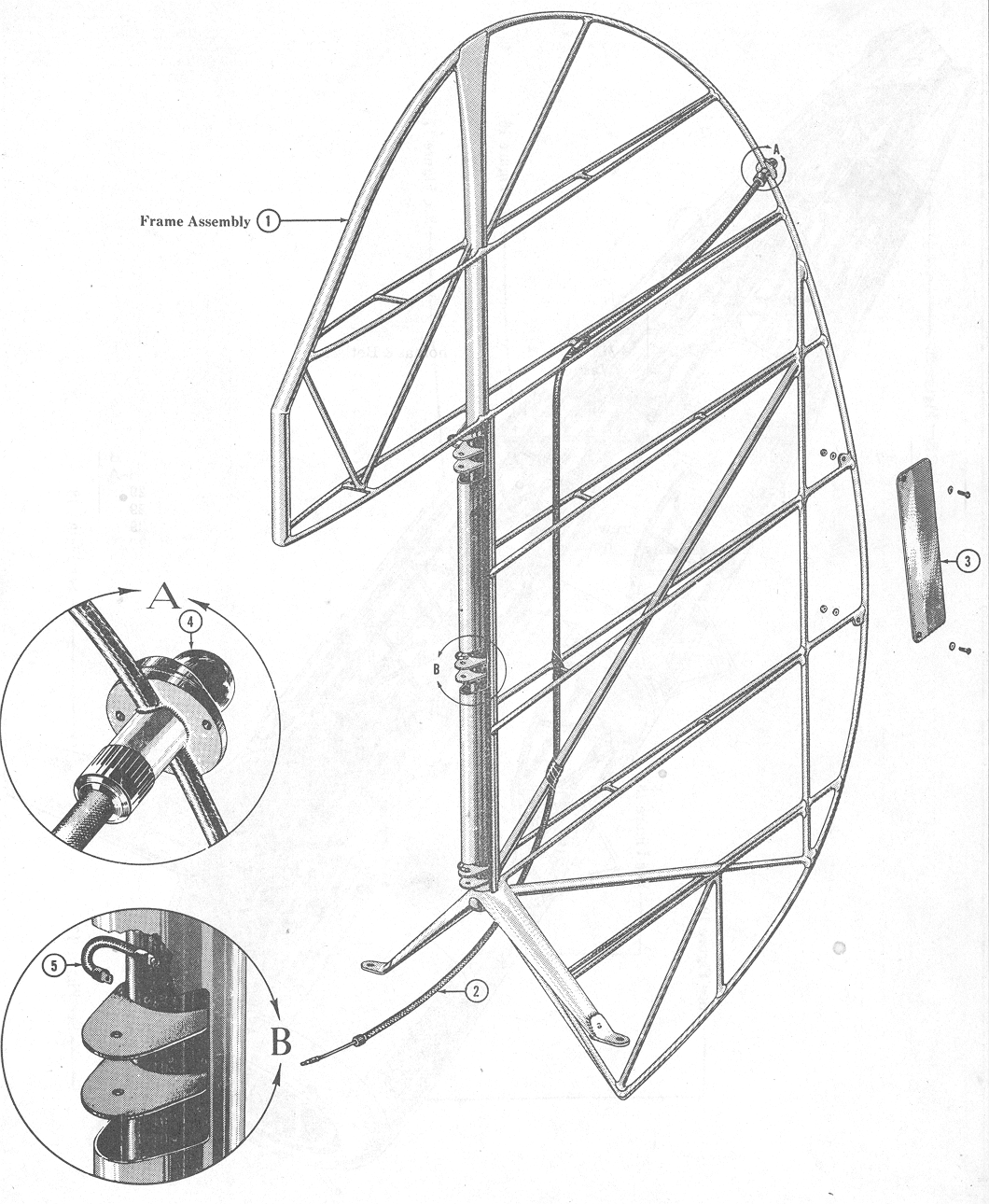

rudder_figure_14a

Part Number = A2064_12 -- Reference Number -- 4 -- Light assembly-tail cone positioning, Grimes

Part Number = AG75_2000 -- Reference Number -- 1 -- Rudder assemlby-covered, grade A

Part Number = AG75_2001 -- Reference Number -- 1 -- Rudder assemlby-uncovered

Part Number = AG75_2004 -- Reference Number -- 6 -- Cover-rudder leading edge

Part Number = AG75_2006 -- Reference Number -- 7 -- Rudder post-complete

Part Number = AN3092_1 -- Reference Number -- 4 -- Light assembly-tail cone positioning
