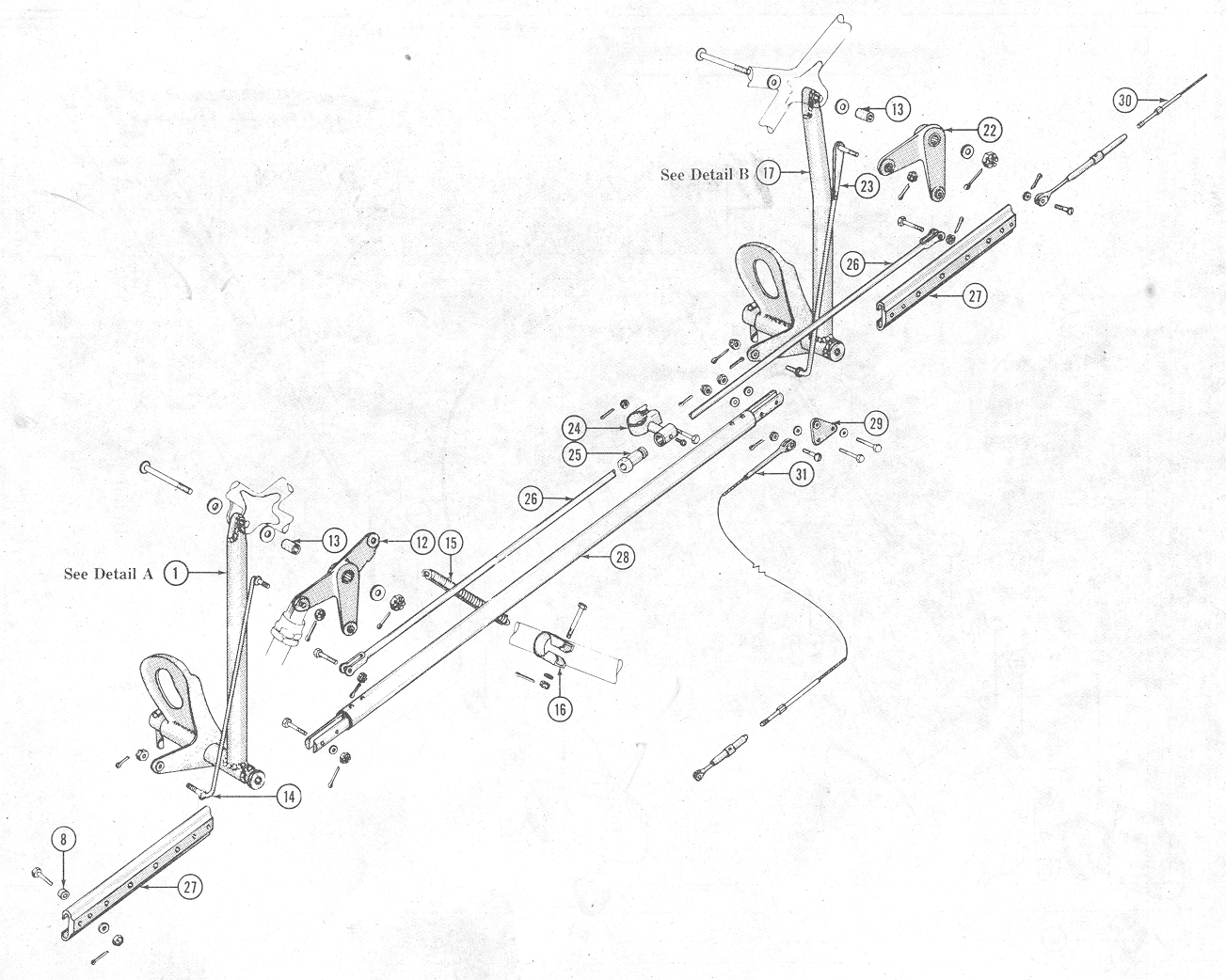

rudder_control_figure_53a

Part Number = 75_3419 -- Reference Number -- 14 -- Rod assembly-front brake pedal connecting, 2 required

Part Number = 75_3420 -- Reference Number -- 23 -- Rod assembly-rear brake pedal connnecting, 2 required

Part Number = 75_3449 -- Reference Number -- 24 -- Support assembly-brake control fairlead, LH

Part Number = 75_3449_1 -- Reference Number -- 24 -- Support assembly-brake control fairlead, RH

Part Number = 75_3472 -- Reference Number -- 17 -- Pedal assembly complete-rear rudder control, LH

Part Number = 75_3472_1 -- Reference Number -- 17 -- Pedal assembly complete-rear rudder control, RH

Part Number = AG73_3426_2 -- Reference Number -- 8 -- Retainer-rudder pedal adjusting spring, 2 required

Part Number = AG75_3401 -- Reference Number -- 28 -- Tube assembly-rudder pedal connection, 2 required

Part Number = AG75_3418 -- Reference Number -- 26 -- Tube-brake control bellcrank connecting, 2 required

Part Number = AG75_3471 -- Reference Number -- 1 -- Pedal assembly complete-front rudder control

Part Number = AG75_3471_1 -- Reference Number -- 1 -- Pedal assembly complete-front rudder control

Part Number = AG75_3475 -- Reference Number -- 12 -- Bellcrank assembly-front brake control, LH

Part Number = AG75_3475_1 -- Reference Number -- 12 -- Bellcrank assembly-front brake control, RH

Part Number = AG75_3477 -- Reference Number -- 22 -- Bellcrank assembly-rear brake control, LH

Part Number = AG75_3477_1 -- Reference Number -- 22 -- Bellcrank assembly-rear brake control, RH

Part Number = AG75_3487 -- Reference Number -- 29 -- Plate assembly-rudder pedal connecting plate, 2 required

Part Number = AG75_3492 -- Reference Number -- 15 -- Spring-brake linkage & spark retarder control, 2 required

Part Number = AGA75N1_3405_2S -- Reference Number -- 30 -- Front rudder control cable-stainless steel, 2 required

Part Number = AGA75N1_3417_S -- Reference Number -- 31 -- Rudder balance control cable-stainless steel, 1 required

Part Number = AGS_110_D51_f -- Reference Number -- 16 -- Clamp-1 1/4" tube, 2 required

Part Number = AGS_210_49S -- Reference Number -- 13 -- Bushing-5/8" o.d., rudder pedal top, 2 required
