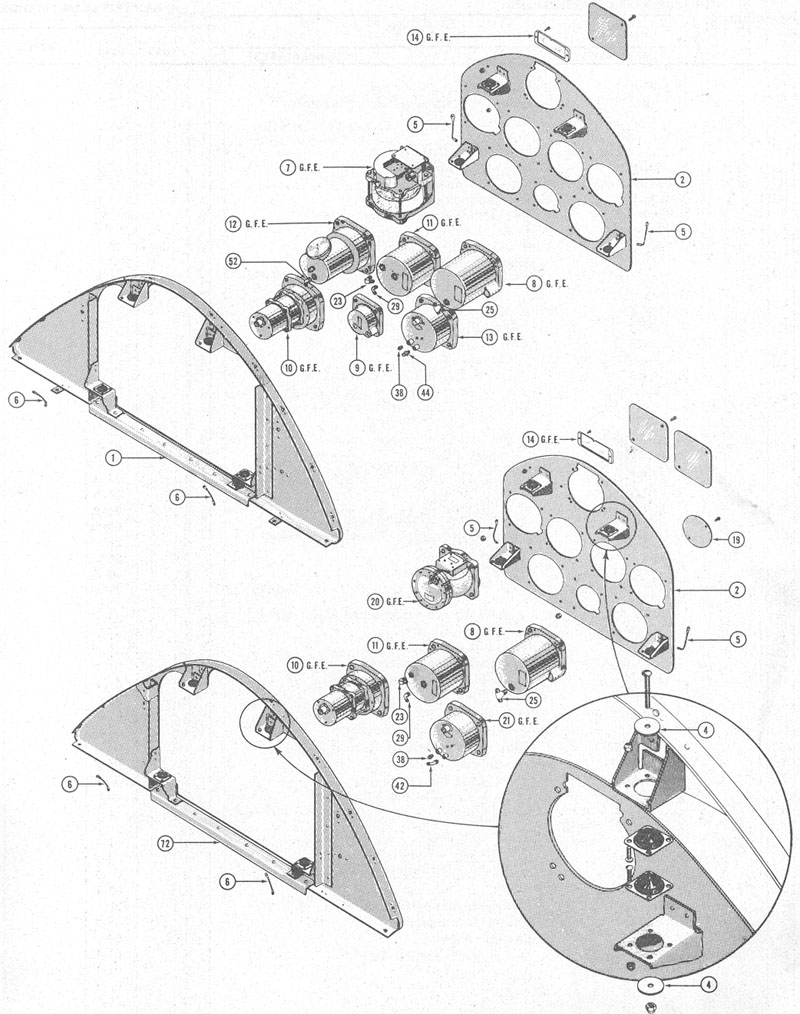

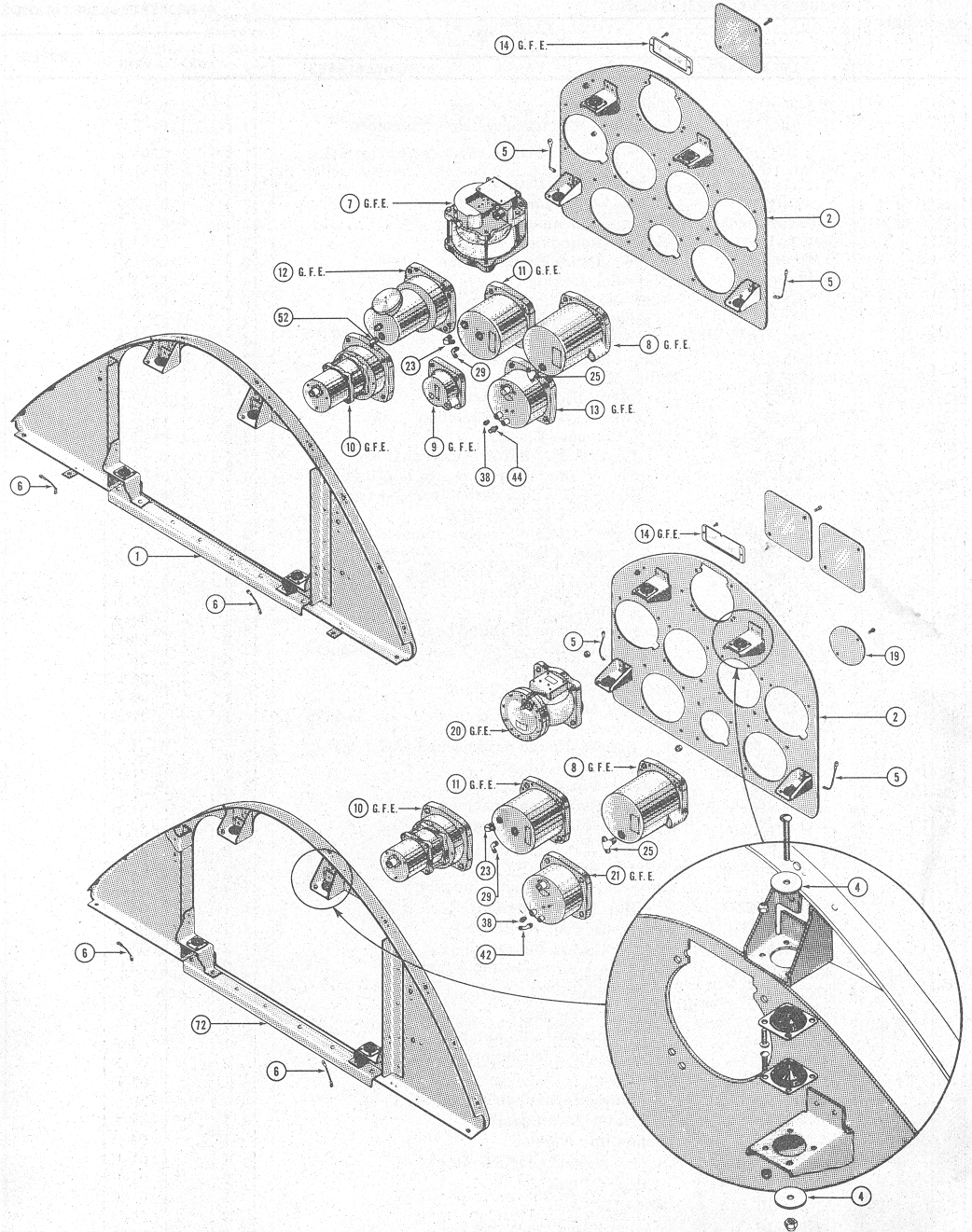

Part Number = 3AJ8_8 -- Reference Number -- 5 -- Jumper-bonding, rear floating panel, 2 required

Part Number = 60_1200 -- Reference Number -- 9 -- A-11 clock-8 day, 7:00 knob

Part Number = 60_800 -- Reference Number -- 8 -- Altimeter-sensitive, C12 or 13, 7:00 knob, original or Matte White dial

Part Number = 88_1_240 -- Reference Number -- 11 -- Air speed indicator-0-300 MPH, dial original or Matte White

Part Number = 88_1_2500 -- Reference Number -- 10 -- Tachometer-electric, 0-4500 RPM, 3 pin connection, original or Matte White dial

Part Number = 88_1_3280 -- Reference Number -- 12 -- Turn & bank indicator-vacuum type, dial original or Matte White

Part Number = 88_C_800 -- Reference Number -- 7 -- Compass-B-16, front cockpit, original or Matte White dial

Part Number = 88_G_1375 -- Reference Number -- 10 -- Generator-electric tach indicator, 3 pin connection (not shown)

Part Number = 88_H_500 -- Reference Number -- 14 -- Holder-compass card

Part Number = 88_U_600_8 -- Reference Number -- 13 -- B-7, 3-1 engine gauge unit-8' capillary, original dial, front cockpit

Part Number = AG75_3809 -- Reference Number -- 2A -- Replacement bracket-floating panel isolator support, 4 required

Part Number = AG75_3839_1 -- Reference Number -- 1 -- Base instrument panel-front, tach indicator mounts RH side

Part Number = AG75_3839_2 -- Reference Number -- 72 -- Base-instrument panel rear, tachometer mounting right side

Part Number = AG75_3840 -- Reference Number -- 1C -- Replacement bracket-lower left isolator support, instrument base

Part Number = AG75_3840_1 -- Reference Number -- 1D -- Replacement bracket-lower right isolator support, instrument base

Part Number = AG75_3841 -- Reference Number -- 1A -- Replacement bracket-upper left isolator support, instrument base

Part Number = AG75_3841_1 -- Reference Number -- 1B -- Replacement bracket-upper right isolator support, instrument base

Part Number = AG75_3852 -- Reference Number -- 2,3 -- Floating panel-instrument, front, 3 holes across center

Part Number = AG75_4513_16 -- Reference Number -- 4 -- Washer-special, base to floating panel, 8 required

Part Number = AGE75N1_3804 -- Reference Number -- 2,3 -- Floating panel-instrument rear, this part shown in figure 74

Part Number = E75_3807 -- Reference Number -- 19 -- Plate-2 1/8" instrument hole closure, optional

Part Number = E75N1_3811 -- Reference Number -- 1 -- Base-instrument panel front, this part shown in figure 74

Part Number = E75N1_3812 -- Reference Number -- 72 -- Base-instrument panel rear, this part shown in figure 74

Part Number = MARK V -- Reference Number -- 10 -- Generator-electric tach indicator, 3 pin connection, front cockpit (not shown)

Part Number = RT_10 -- Reference Number -- 10 -- Tachometer-hour recording, cable drive, rear cockpit, R670, PT-17

Part Number = RT_8 -- Reference Number -- 10 -- Tachometer-hour recording, cable drive, rear cockpit, R680, PT-13
