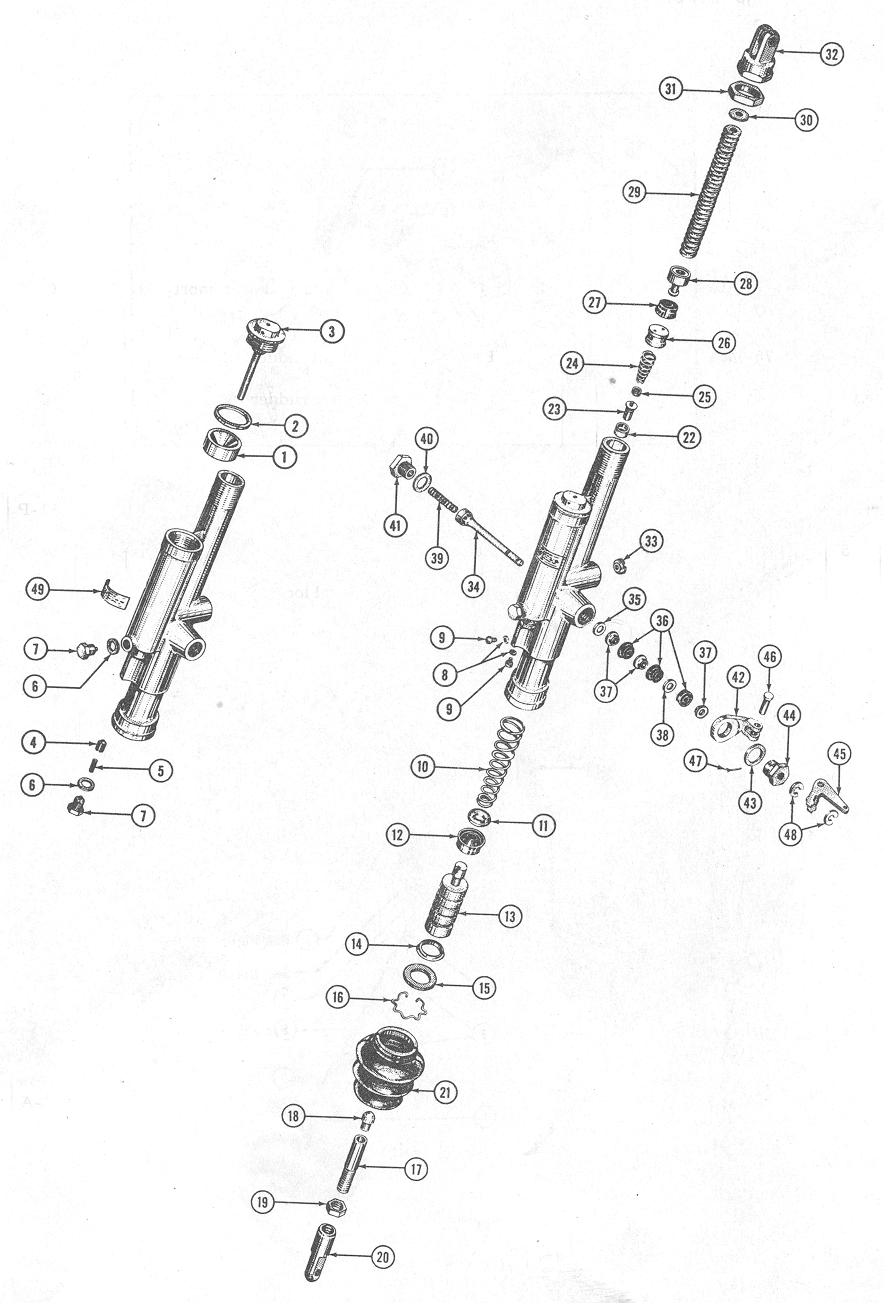

hydraulic_brake_figure_50a

Part Number = 51601 -- Reference Number -- 18 -- Button-push rod

Part Number = 52107 -- Reference Number -- 9 -- Screw-#6-32 bleeder, 2 required

Part Number = 52150 -- Reference Number -- 10 -- Spring-master cylinder piston return

Part Number = 52151 -- Reference Number -- 11 -- Cup-master cylinder return spring retainer

Part Number = 52152 -- Reference Number -- 13 -- Piston-7/8" diameter master cylinder

Part Number = 52228 -- Reference Number -- 41 -- Plug-parking brake valve

Part Number = 52230 -- Reference Number -- 37 -- Spacer-parking brake valve cap, 3 required

Part Number = 52237 -- Reference Number -- 31 -- Nut-case cap jam

Part Number = 52238 -- Reference Number -- 28 -- Piston-compensator

Part Number = 52245 -- Reference Number -- 7 -- Plug-reservoir, 2 required

Part Number = 52248 -- Reference Number -- 17 -- Rod-master cylinder push

Part Number = 52250 -- Reference Number -- 25 -- Retainer-valve spring

Part Number = 52251 -- Reference Number -- 34 -- Control-parking brake valve

Part Number = 52252 -- Reference Number -- 48 -- Washer-parking brake valve control

Part Number = 52255 -- Reference Number -- 45 -- Lever-parking brake valve control

Part Number = 52258 -- Reference Number -- 20 -- Fitting-push rod

Part Number = 52259 -- Reference Number -- 35 -- Washer-parking brake valve cup, inner

Part Number = 52263 -- Reference Number -- 32 -- Cap assembly-compensating chamber

Part Number = 52264 -- Reference Number -- 33 -- Stop-compensator spacer

Part Number = 52383 -- Reference Number -- 24 -- Spring-valve

Part Number = 52384 -- Reference Number -- 5 -- Spring-reservoir check valve

Part Number = 52469 -- Reference Number -- 15 -- Washer-master cylinder piston retainer

Part Number = 52484 -- Reference Number -- 29 -- Spring-compensator

Part Number = 52542 -- Reference Number -- 1 -- Baffle-reservoir disc

Part Number = 52743 -- Reference Number -- 26 -- Cage-valve

Part Number = 52744 -- Reference Number -- 23 -- Valve-parking brake

Part Number = 55003 -- Reference Number -- 44 -- Guide-parking brake valve control

Part Number = 55004 -- Reference Number -- 42 -- Bracket-parking brake valve lever

Part Number = 55182 -- Reference Number -- 39 -- Spring-valve control

Part Number = 55563 -- Reference Number -- 30 -- Clip-compensator spring

Part Number = 55958 -- Reference Number -- 46 -- Pin-parking brake valve lever

Part Number = 56742 -- Reference Number -- 3 -- Reservoir cap & check valve assembly

Part Number = 56880 -- Reference Number -- 27 -- Cup-3/4" compensator

Part Number = 56885 -- Reference Number -- 21 -- Boot-master cylinder push rod

Part Number = 56887 -- Reference Number -- 22 -- Cup-parking brake valve

Part Number = 56889 -- Reference Number -- 36 -- Cup-parking brake valve, 3 required

Part Number = 57763 -- Reference Number -- 12 -- Cup-master cylinder piston

Part Number = 57859 -- Reference Number -- 14 -- Seal-master cylinder piston

Part Number = 58176 -- Reference Number -- 38 -- Washer-parking brake valve cup, outer

Part Number = 59100 -- Reference Number -- 4 -- Valve-reservoir check

Part Number = 59102 -- Reference Number -- 2 -- Gasket-reservoir cap

Part Number = 59173 -- Reference Number -- 16 -- Ring-master cylinder bronze snap

Part Number = 111_S_24 -- Reference Number -- 47 -- Pin-parking brake valve lever

Part Number = 117_S_4 -- Reference Number -- 19 -- Nut-push rod

Part Number = 174_S_1 -- Reference Number -- 8 -- Gasket-#6 bleeder screw, 2 required

Part Number = 174_S_10 -- Reference Number -- 43 -- Gasket-parking lever nut

Part Number = 174_S_19 -- Reference Number -- 40 -- Gasket-parking brake valve

Part Number = 174_S_4 -- Reference Number -- 6 -- Gasket-reservoir plug, 2 required
