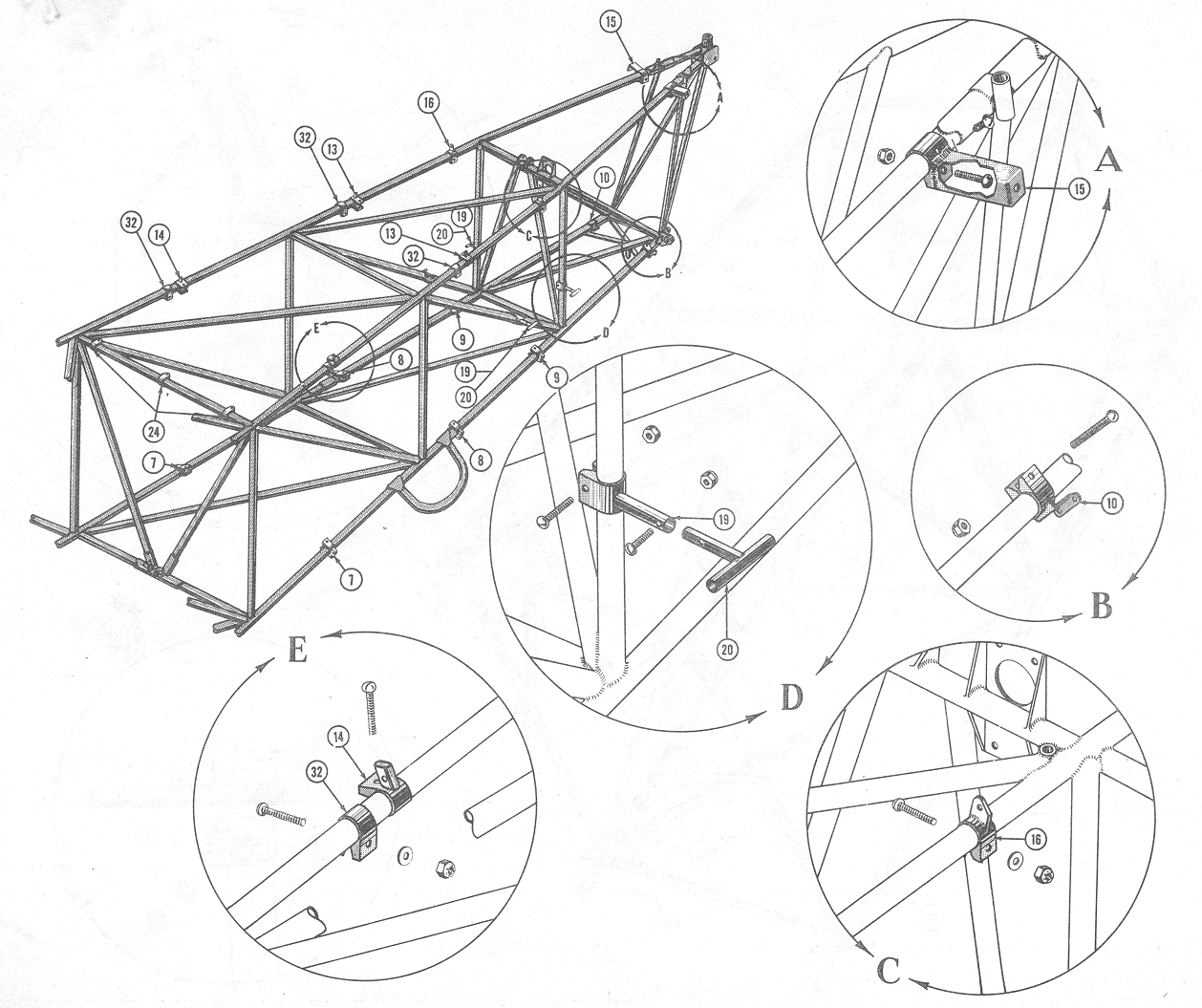

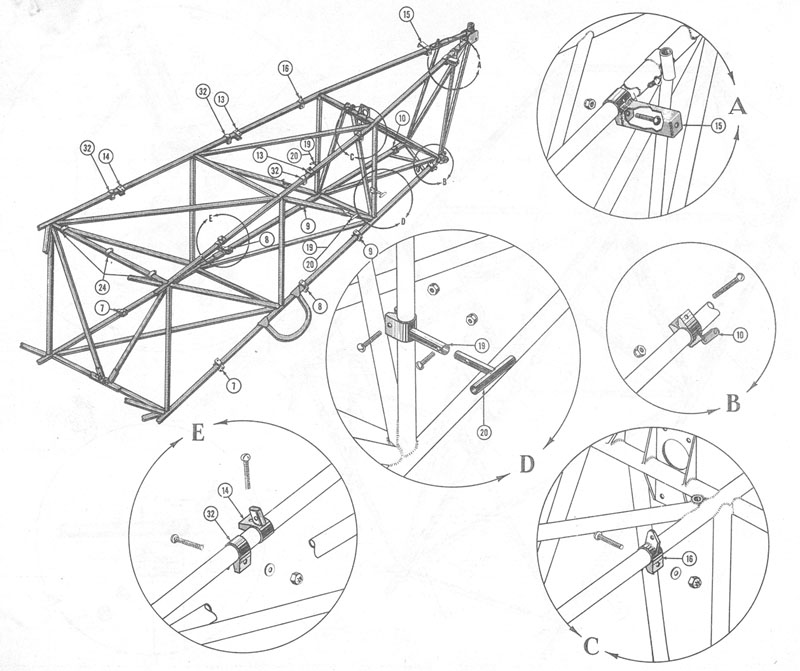

fuselage_figure_19a

Part Number = AG75_2339_7 -- Reference Number -- 7 -- Clamp assembly-fairing arch support, lower, 2 required

Part Number = AG75_2339_8 -- Reference Number -- 8 -- Clamp assembly-fairing arch support, lower, 2 required

Part Number = AG75_2339_6 -- Reference Number -- 9 -- Clamp assembly-fairing arch support, lower, 2 required

Part Number = AG75_2348 -- Reference Number -- 10 -- Clamp assembly-rear fairing arch suport lower, 2 required

Part Number = AG75_2385_1 -- Reference Number -- 13 -- Clamp assembly-top fairing arch support, 2 required

Part Number = AG75_2385_2 -- Reference Number -- 14 -- Clamp assembly-top fairing arch support, 2 required

Part Number = AG75_2386 -- Reference Number -- 15 -- Clamp assembly-fairing channel rear support, 2 required

Part Number = AG75_2388 -- Reference Number -- 16 -- Clamp assembly-rear fairing arch suport, 2 required

Part Number = AG75_2460 -- Reference Number -- 19 -- Clamp assembly-side fairing strip support, 4 required

Part Number = AG75_2461 -- Reference Number -- 20 -- Support assembly-side fairing strip, 4 required
