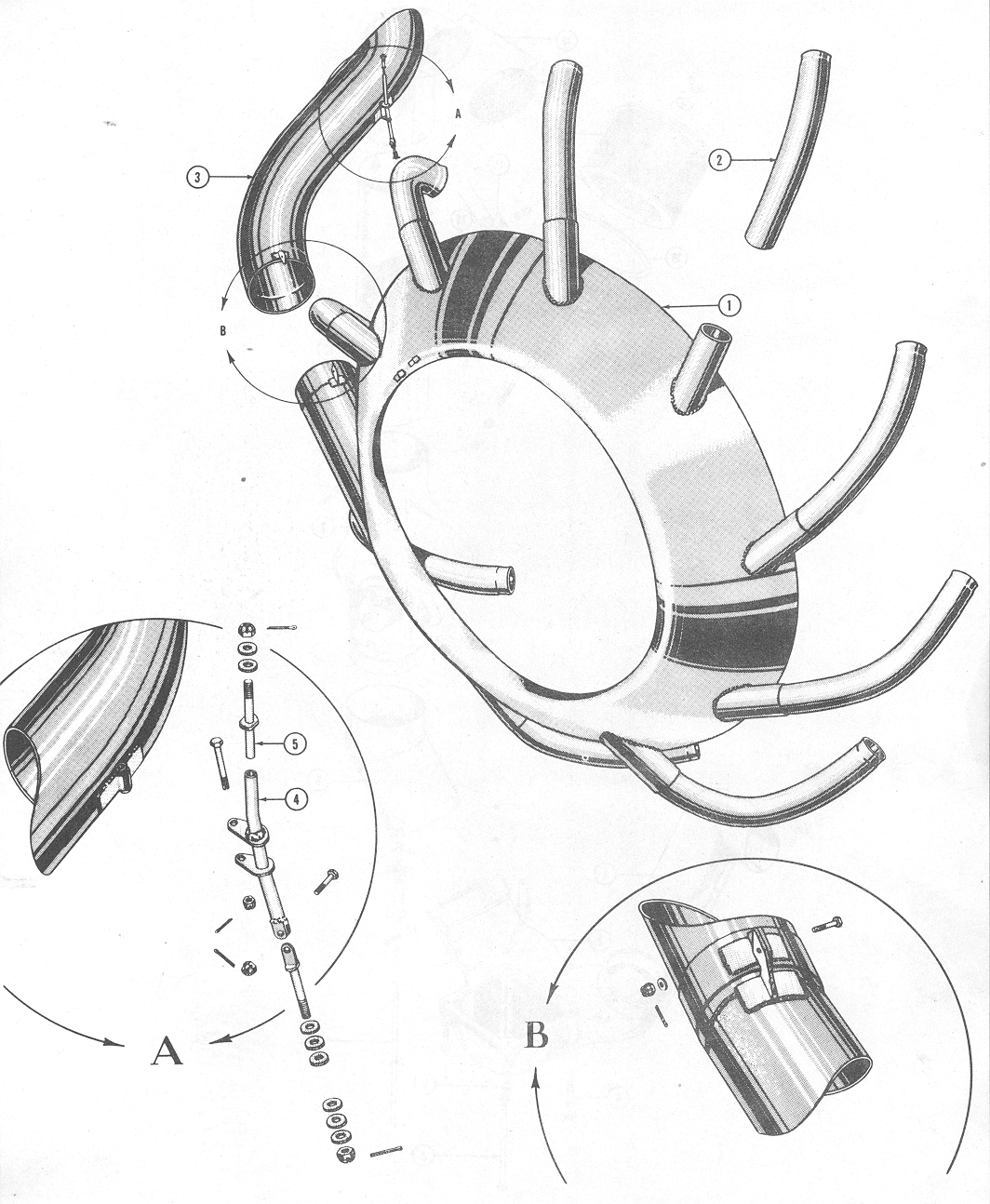

engine_install_figure_34a

Part Number = 75_2861_1 -- Reference Number -- 1 -- Ring assembly-exhaust

Part Number = 75_2861_10 -- Reference Number -- 3 -- Tail pipe assembly

Part Number = 75_2861_15 -- Reference Number -- 2 -- Pipe-cylinder exhaust, 9 required

Part Number = AG75_2858_1 -- Reference Number -- 5 -- Fitting-exhaust collector support

Part Number = AG75_2858_2 -- Reference Number -- 4 -- Support assembly-exhaust collector tailpipe
