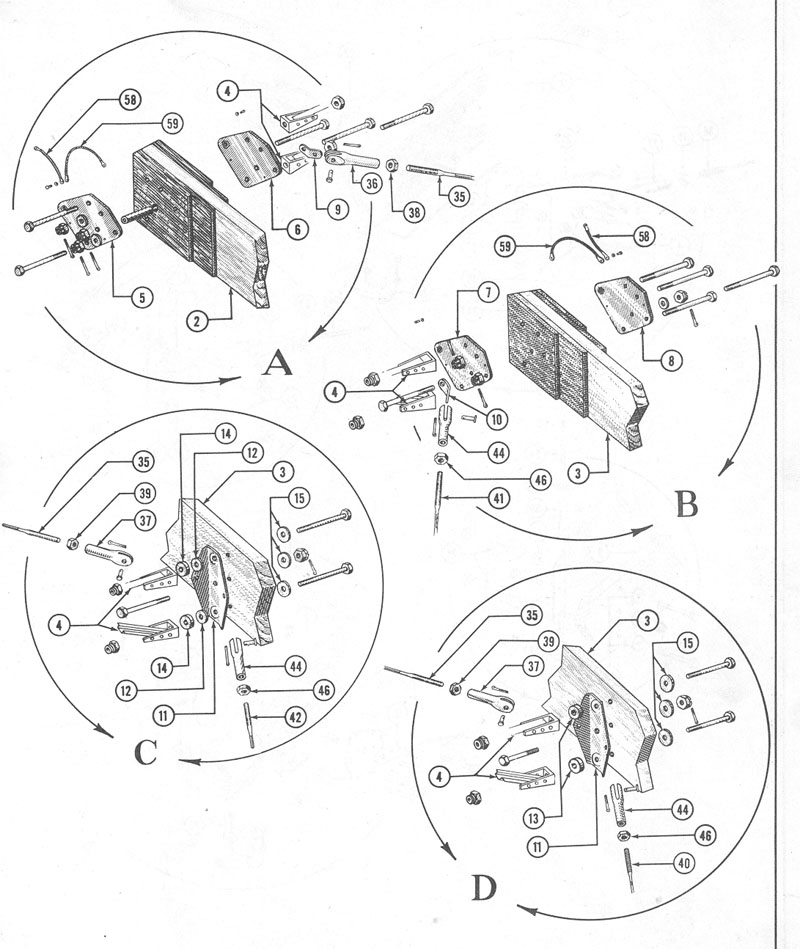

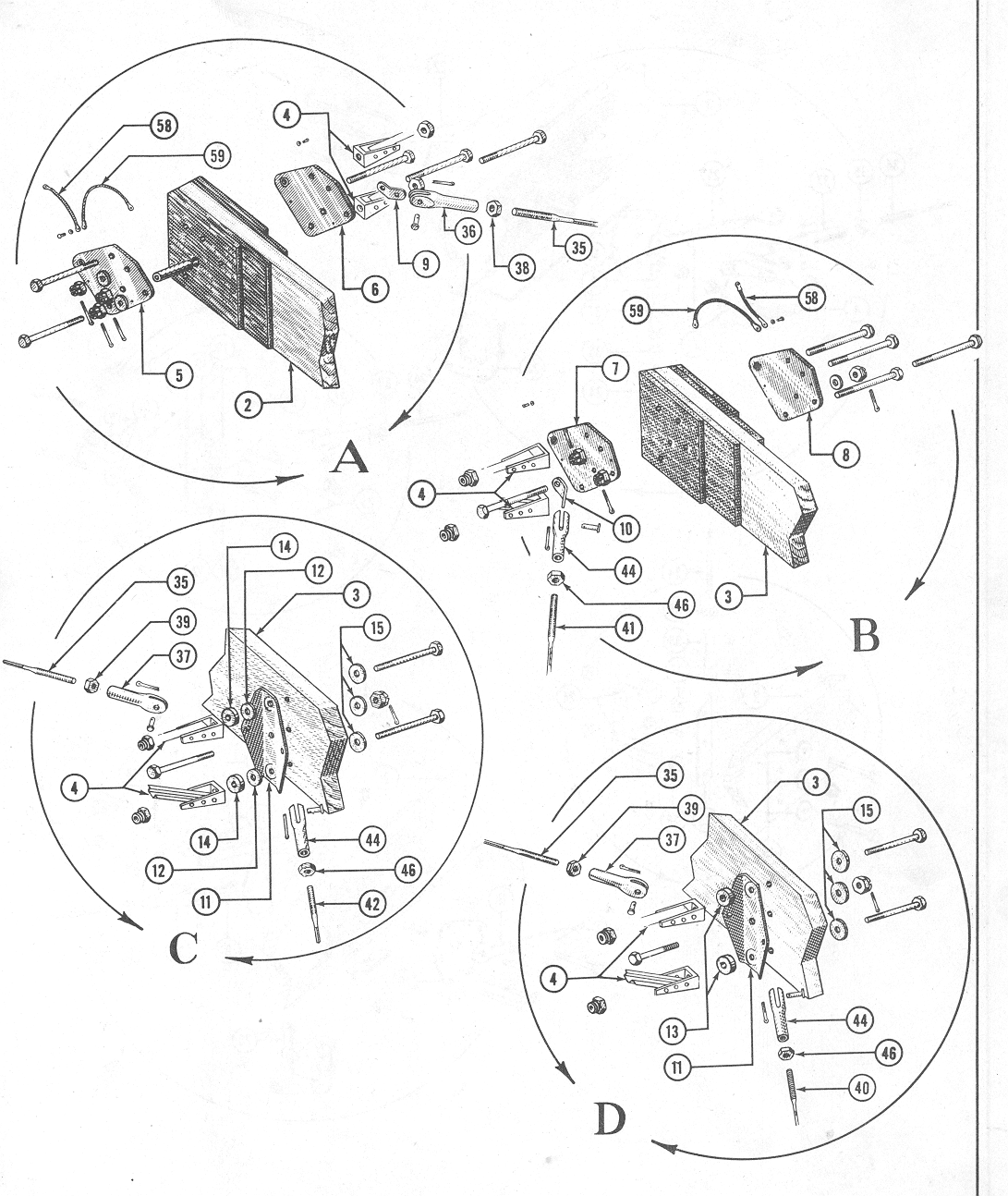

upper_wing_figure_3a

Part Number = 4AJ8_8 -- Reference Number -- 59 -- Jumper-bonding, 2 required

Part Number = 75_1120_1120_1 -- Reference Number -- 5, 6 -- Plate assy set-upper front root LH & RH

Part Number = 75_1121_1121_1 -- Reference Number -- 7, 8 -- Plate assy set-upper rear root LH & RH

Part Number = 75_1127 -- Reference Number -- 11 -- Lug-wing drag wire double, 4 required

Part Number = AG75_4513_22 -- Reference Number -- 12 -- Washer-special, 4 required

Part Number = AG75_4513_34 -- Reference Number -- 13 -- Washer-special, 4 required

Part Number = AG75_4513_35 -- Reference Number -- 14 -- Washer-special, 4 required

Part Number = AGS_280_12S -- Reference Number -- 5, 6, 7, 8 -- Bushing-flanged for AG75-1120, 1120-1, 1121, 1121-1

Part Number = AN665_21L_SS -- Reference Number -- -- Clevis terminal, RH thread, 2 required û s.steel

Part Number = AN665_21R_SS -- Reference Number -- -- Clevis terminal, RH thread, 2 required û s.steel

Part Number = AN703A_3900 -- Reference Number -- 35 -- Tie rod-internal, 2100# 10-32

Part Number = AN703AC_3900 -- Reference Number -- 35 -- Tie rod-internal, s.steel, 2100# 10-32 less ends, 3 required

Part Number = AN704A_3750 -- Reference Number -- 40 -- Tie rod-internal 3400# ?-28, 1 required

Part Number = AN704A_3825 -- Reference Number -- 41 -- Tie rod-internal 3400# ?-28, 1 required

Part Number = AN704A_3900 -- Reference Number -- 42 -- Tie rod-internal 3400# ?-28, 1 required

Part Number = AN704AC_3750 -- Reference Number -- 40 -- Tie rod-s.steel, internal 3400# ?-28, 1 required less ends

Part Number = AN704AC_3825 -- Reference Number -- 41 -- Tie rod-s.steel, internal 3400# ?-28, 1 required less ends

Part Number = AN704AC_3900 -- Reference Number -- 42 -- Tie rod-s.steel, internal 3400# ?-28, 1 required less ends
