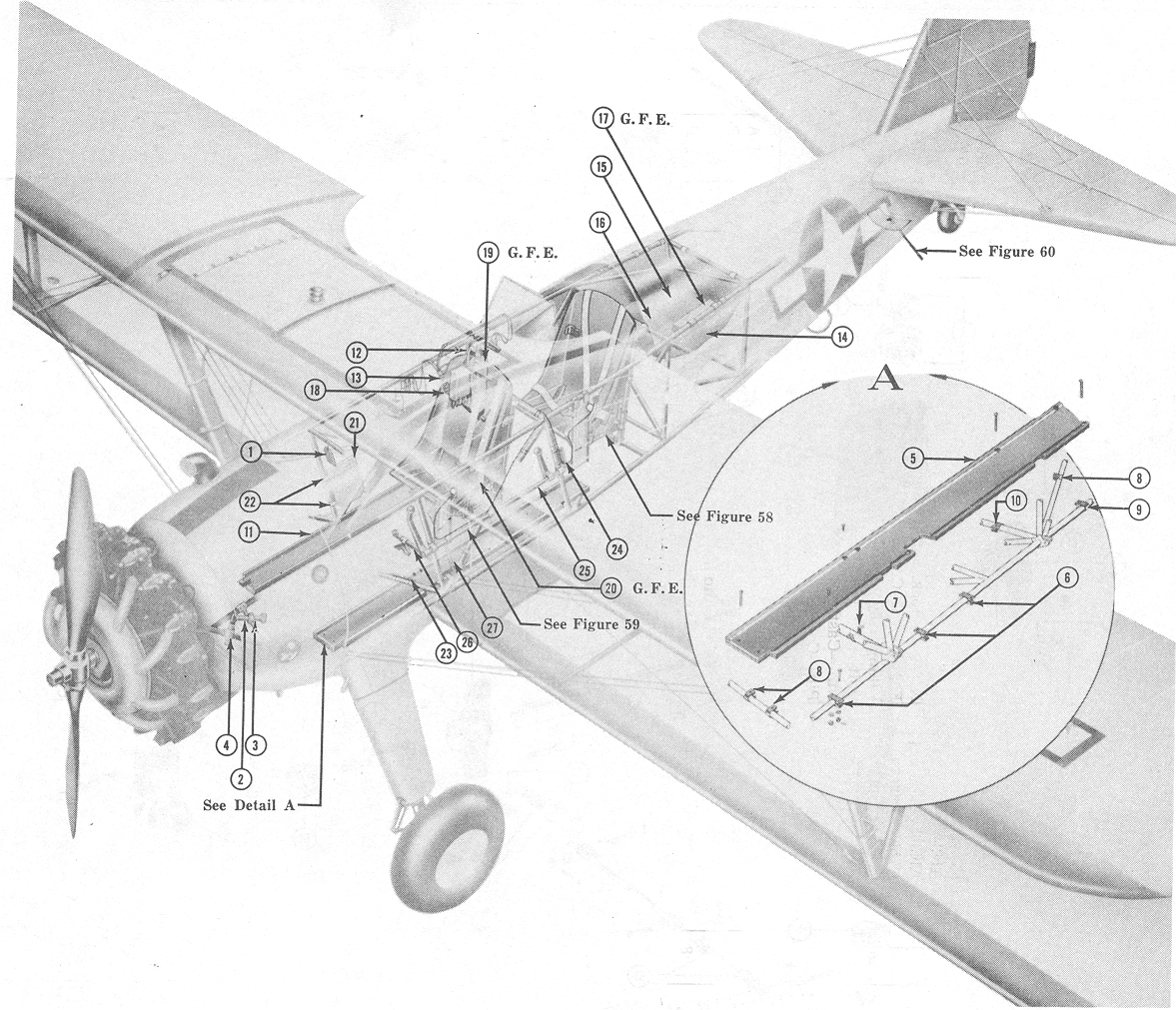

furnishings_figure_60a

Part Number = 42_725 -- Reference Number -- 2 -- Crank-hand starter (A75N1-2845-3)

Part Number = 75_3625 -- Reference Number -- 21 -- Holder assembly-airplane flight report

Part Number = 75_3648 -- Reference Number -- 18 -- Clamp assembly-name plate support

Part Number = AG75_3623 -- Reference Number -- 6 -- Clamp assembly-floorboard support, 3 required per side

Part Number = AG75_3624 -- Reference Number -- 7 -- Clamp-floorboard support, 1 required per side

Part Number = AG75_3626 -- Reference Number -- 14 -- Baggage compartment canvas

Part Number = AGA75N1_3608 -- Reference Number -- 5 -- Floorboard-cockpit, LH, aluminum 6061-T6 extrusion

Part Number = AGA75N1_3608_1 -- Reference Number -- 5,11 -- Floorboard-cockpit, RH, aluminum 6061-T6 extrusion

Part Number = AGS_110_D51_e -- Reference Number -- 10 -- Clamp-1 1/4" diameter tube, floorboard attach, per side

Part Number = E75_2806 -- Reference Number -- 3 -- Clip assembly-starter crank

Part Number = E75_2807 -- Reference Number -- 4 -- Tube assembly-starter crank

Part Number = E75N1_3609 -- Reference Number -- 12 -- Support assembly-fire extinguisher & interphone

Part Number = S_101_18 -- Reference Number -- 13 -- Tube clip-2 required
