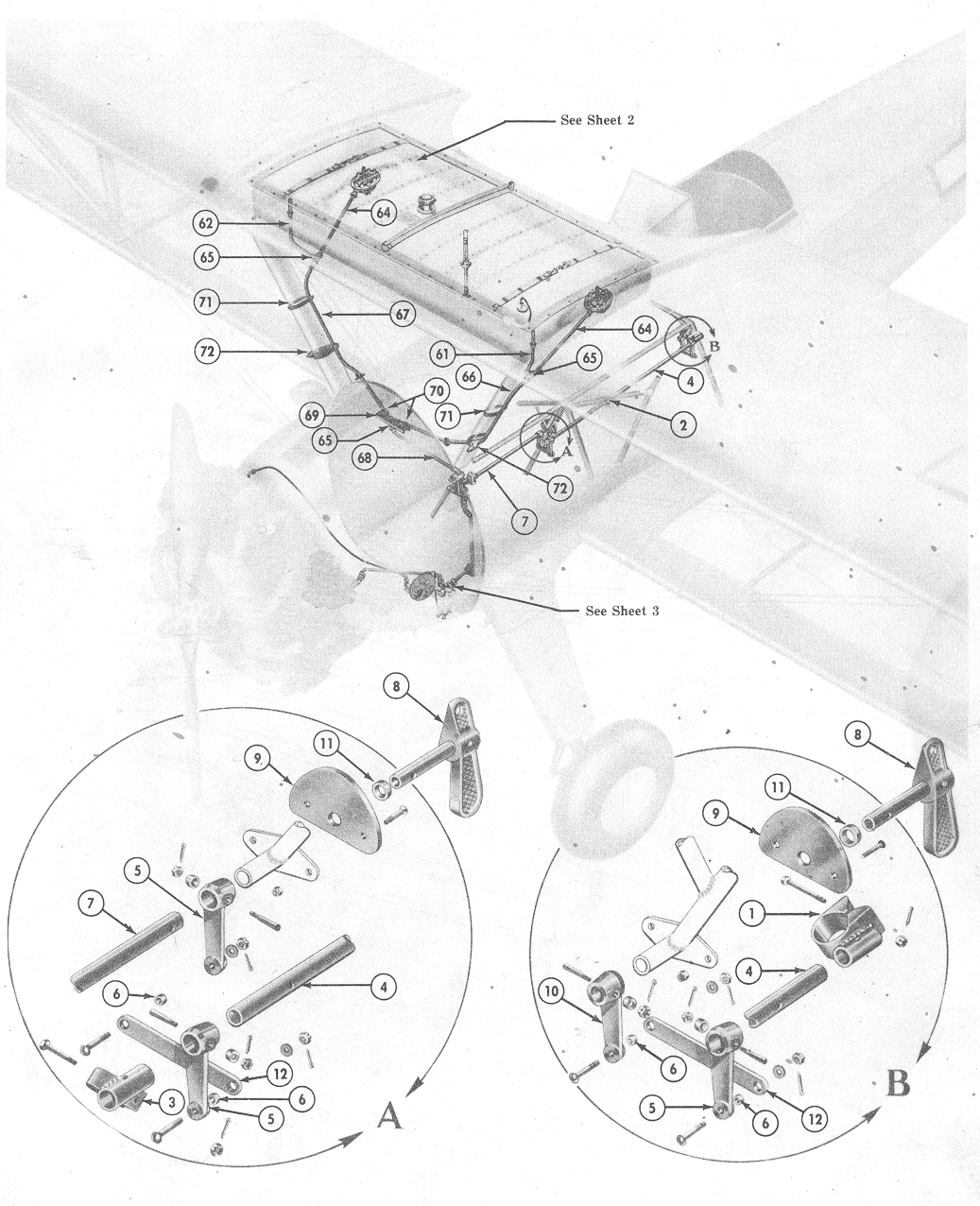

fuel_system_figure_43a

Part Number = 75_3170_1 -- Reference Number -- 5 -- Lever-torque tube, 3 required, R670, R680

Part Number = 75_3170_2 -- Reference Number -- 10 -- Lever-torque tube, R670, R680

Part Number = AG75_3132 -- Reference Number -- 7 -- Tube assembly-fuel cock front torque, R670, R680

Part Number = AG75_3133 -- Reference Number -- 4 -- Tube assembly-fuel cock rear torque, R670, R680

Part Number = AG75_3140_1 -- Reference Number -- 12 -- Link-cock control arm connecting, R670, R680, 2 required

Part Number = AG75_3152 -- Reference Number -- 8 -- Handle assembly-fuel cock control, R670, R680, 2 required

Part Number = AG75_3163 -- Reference Number -- 3 -- Bearing assembly-fuel cock torque tube, front, R670, R680

Part Number = AG75_3164 -- Reference Number -- 2 -- Bearing assembly-fuel cock torque tube, center, R670, R680

Part Number = AG75_3165 -- Reference Number -- 1 -- Bearing assembly-fuel cock torque tube, rear, R670, R680

Part Number = AG75_4513_6 -- Reference Number -- 11 -- Washer-special, R670, R680, 2 required

Part Number = AGA75N1_3106 -- Reference Number -- 9 -- Dial-fuel cock control, 2 required
