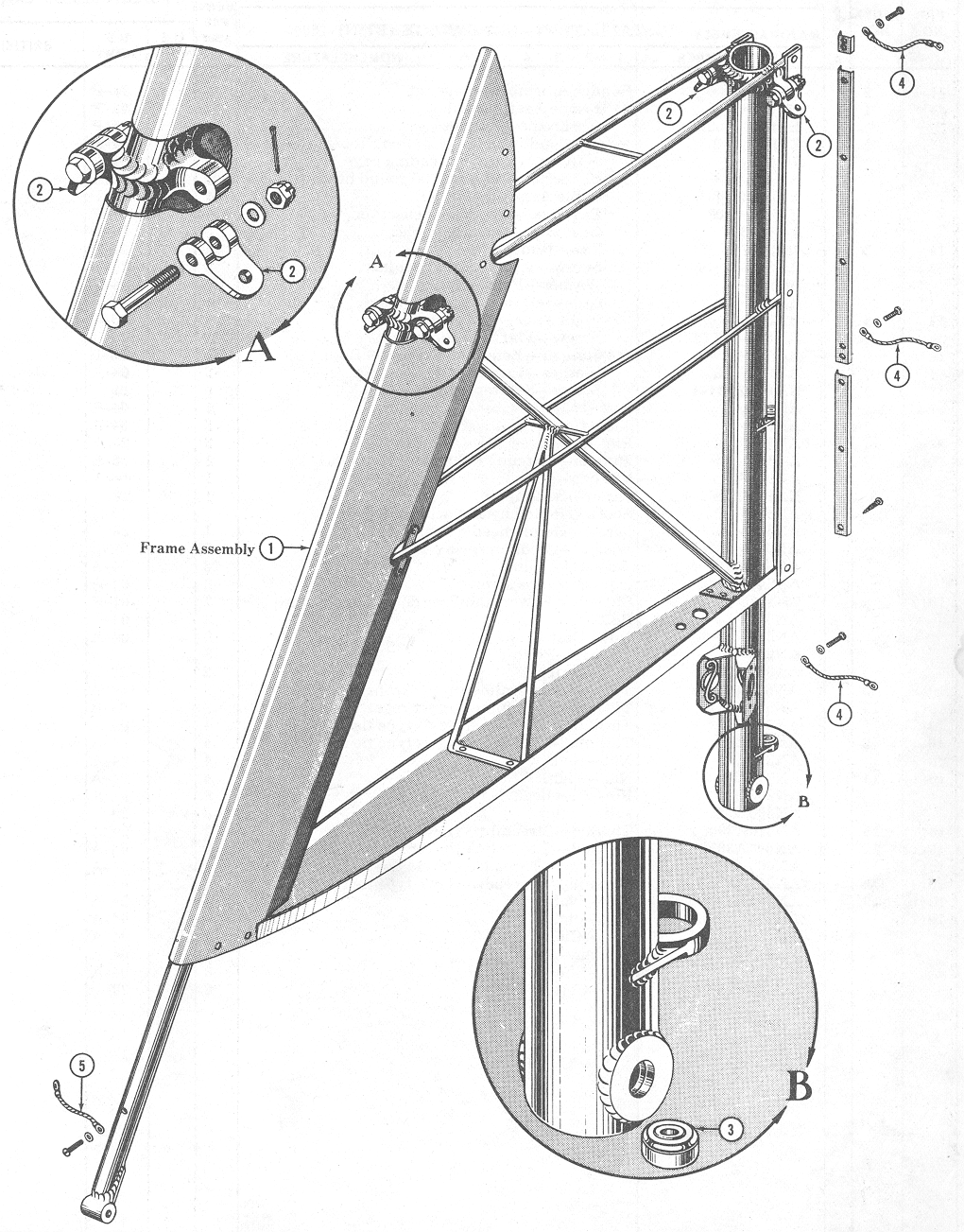

fin_figure_13a

Part Number = 75_1607 -- Reference Number -- 2 -- Shackle-2100# upper brace wire, 4 required

Part Number = AG75_1707_5 -- Reference Number -- 10 -- Strip-tail surface fabric

Part Number = AG75_1707_6 -- Reference Number -- 8 -- Strip-tail surface fabric

Part Number = AG75_1707_7 -- Reference Number -- 9 -- Strip-tail surface fabric

Part Number = AG75_1900 -- Reference Number -- 1 -- Vertical fin-covered, grade A

Part Number = AG75_1901 -- Reference Number -- 1 -- Vertical fin-uncovered

Part Number = AG75_1904 -- Reference Number -- 7 -- Root rib-vertical fin

Part Number = AG75_1905 -- Reference Number -- 6 -- Fairing assembly-leading edge

Part Number = K3L -- Reference Number -- 3 -- Replacement bearing-vertical fin hinge, 3 required
