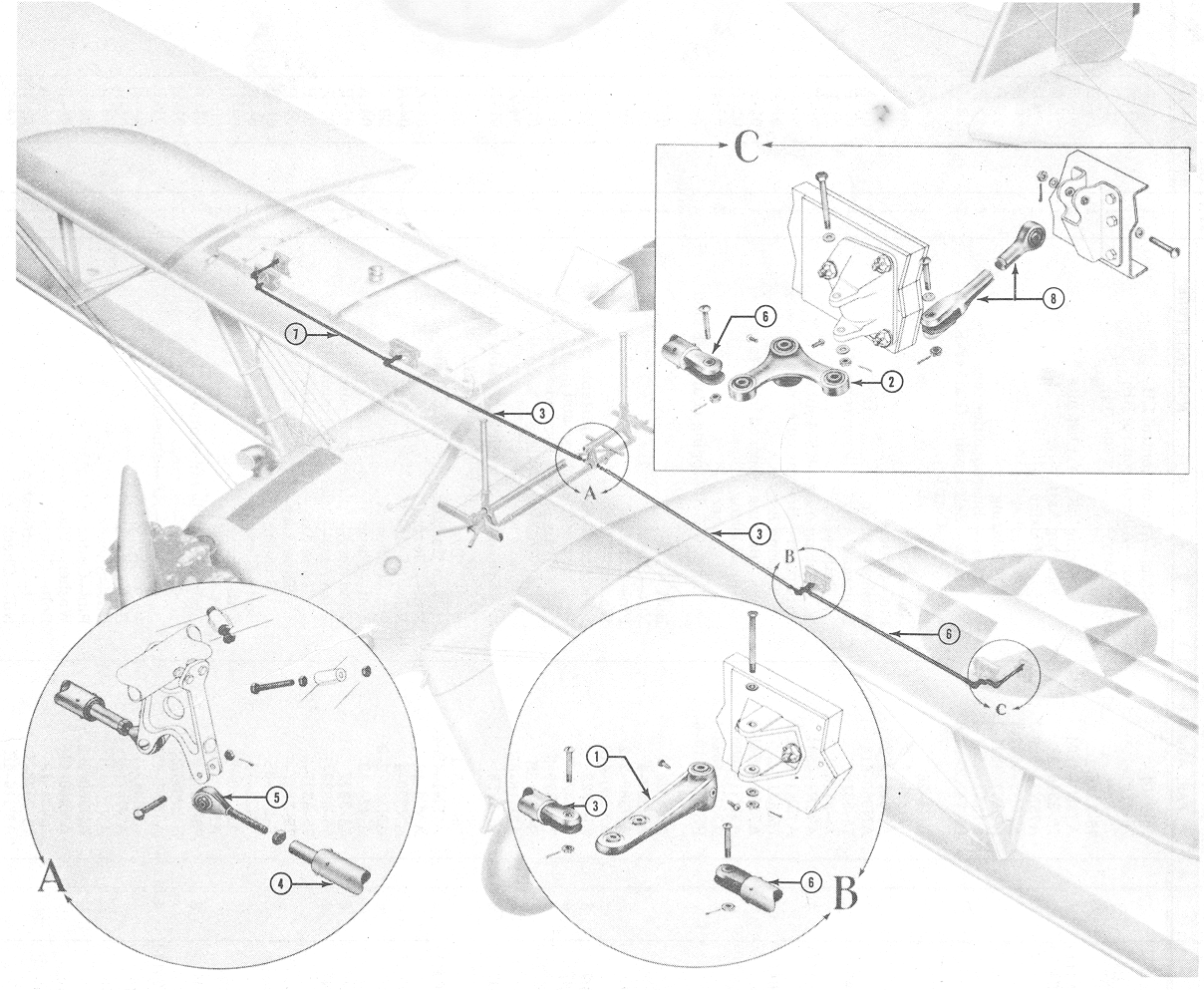

aileron_control_figure_48a

Part Number = 75_3313 -- Reference Number -- 2 -- Bellcrank assembly-aileron control, 2 required

Part Number = 75_3327 -- Reference Number -- 6 -- Tube assembly-aileron push pull, LH

Part Number = 75_3327_1 -- Reference Number -- 7 -- Tube assembly-aileron push pull, RH

Part Number = 75_3346 -- Reference Number -- 1 -- Idler assembly-aileron control, 2 required

Part Number = 75_3349 -- Reference Number -- 8 -- Link assembly-aileron control, 2 required

Part Number = AG75_3325 -- Reference Number -- 3 -- Tube assembly-aileron adjustable push pull with eye & nut, 2 required

Part Number = AG75_3325_2 -- Reference Number -- 4 -- Tube assembly-aileron adjustable push pull, 2 required

Part Number = AG75_3355 -- Reference Number -- 5 -- Eye assembly-aileron adjustable push pull tube, 2 required
